Chapter 13 Alternative Rack Mounting (4–Post)
110
Marking the Columns
To make it easier to install the slides in the rack, you may want to mark the
columns to indicate the server placement. Use the HP Rack Configuration Tools
to determine where in the rack to mount the HP Netserver. The tools are available
at the following URL:
http://www.hp.com/netserver/support
1. Use a marking pen or masking tape to mark the server position on the
inside of the front and rear columns, as shown in Figure 13-2.
The slides will use the second column hole, counting from the base of the
HP Netserver.
Front of
Rack
Mark this face of
the columns with
masking tape
or marker pen.
Right
Side Left
Side
Rear of
Rack
Bottom of
HP NetServer Masking
Tape or
Marker
Inside Face of Column

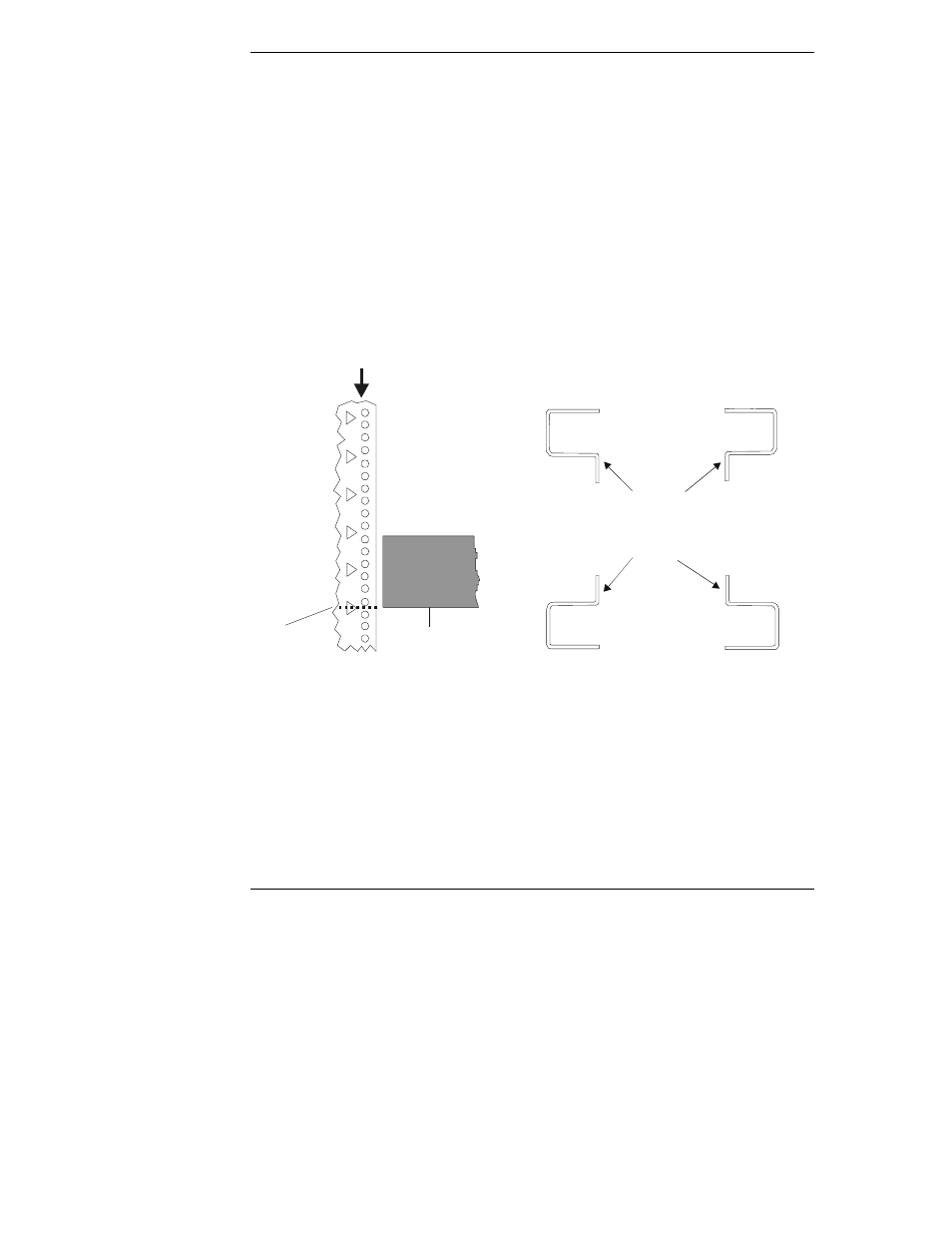

Figure 13-2. Marking Server Placement
