Chapter 1 Controls, Ports and Indicators
5
Power Supply Bay #1
Power
Supply
LED
AC for PS Bay #1
AC for PS Bay #2
Power Supply Bay #2
Serial B
Keyboard
Serial A/
Management Lan A/Management
Parallel
External SCSI Port
PCI Slots (3)
Slot 3
Slot 2
Slot 1
Lan B
M o u s e
USB (2)
Video

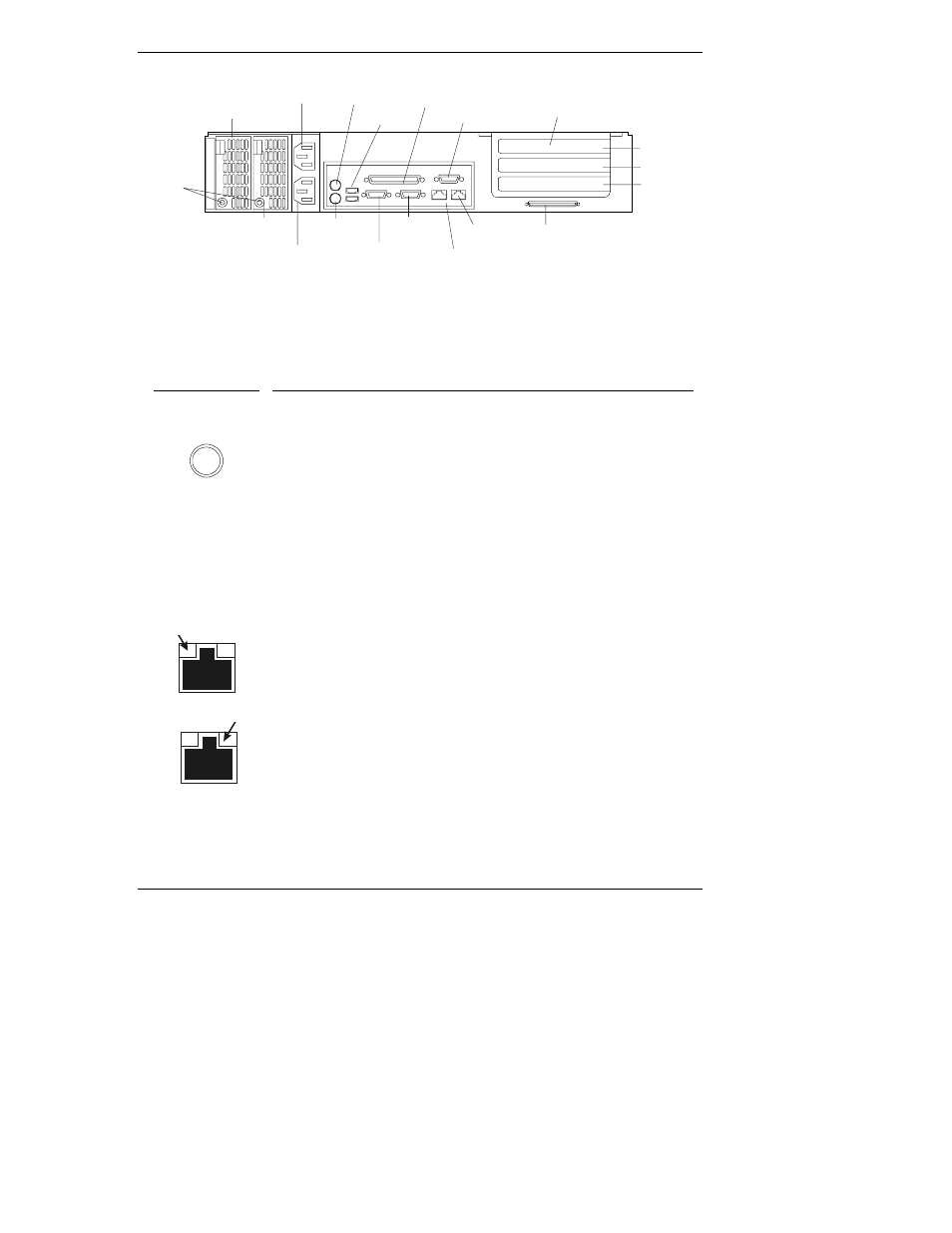

Figure 1-3. Rear Panel and Ports
Table 1-3. Rear Panel LED Indicators
Indicator Definition
Power Supply LED Each power supply module has a status LED:
•
Steady Green indicates the power supply module is powered
up and operating normally.
•
Flashing Green indicates that AC current is present and the
power supply module is in standby mode (HP Netserver is
powered off).
•
Steady Amber may indicate a power module failure, a system
over-current condition, a blown fuse in the power supply
module or cage, or that no AC is present.
•
Off indicates the AC line cord is unplugged from all installed
power modules.
Link LED This LED is the activity/link indicator:
•
Steady Green indicates a valid LAN link.
•
Flashing Green indicates there is LAN activity.
LAN Speed LED This LED is the LAN speed indicator:
•
Steady Amber shows LAN is operating at 100 Mbps LAN
speed.
•
Off shows LAN is operating at 10 Mbps LAN speed.
