Chapter 2 Opening and Closing the HP Netserver
10
Replacing the Front Bezel
1. Hook the bottom edge of the bezel onto the pins at the front of the chassis.
See Figure 2-1.
2. Close the bezel and press the top corners to snap it into place.
Removing the Top Cover
You do not need to remove the front bezel to remove the top cover of the
Netserver.
1. If the HP Netserver is operating, log off all users and shut down the
operating system.
2. Pull out the anti-tip foot at the bottom of the rack. Then slowly slide the
HP Netserver chassis out from the rack.
3. Disconnect the power cord and unplug cables.
4. Release the top cover by turning the knob at the front of the chassis in a
clockwise direction. See Figure 2-2.
5. Slide the top cover about ½ inch (13mm) toward the front of the Netserver
and then lift it off the chassis.

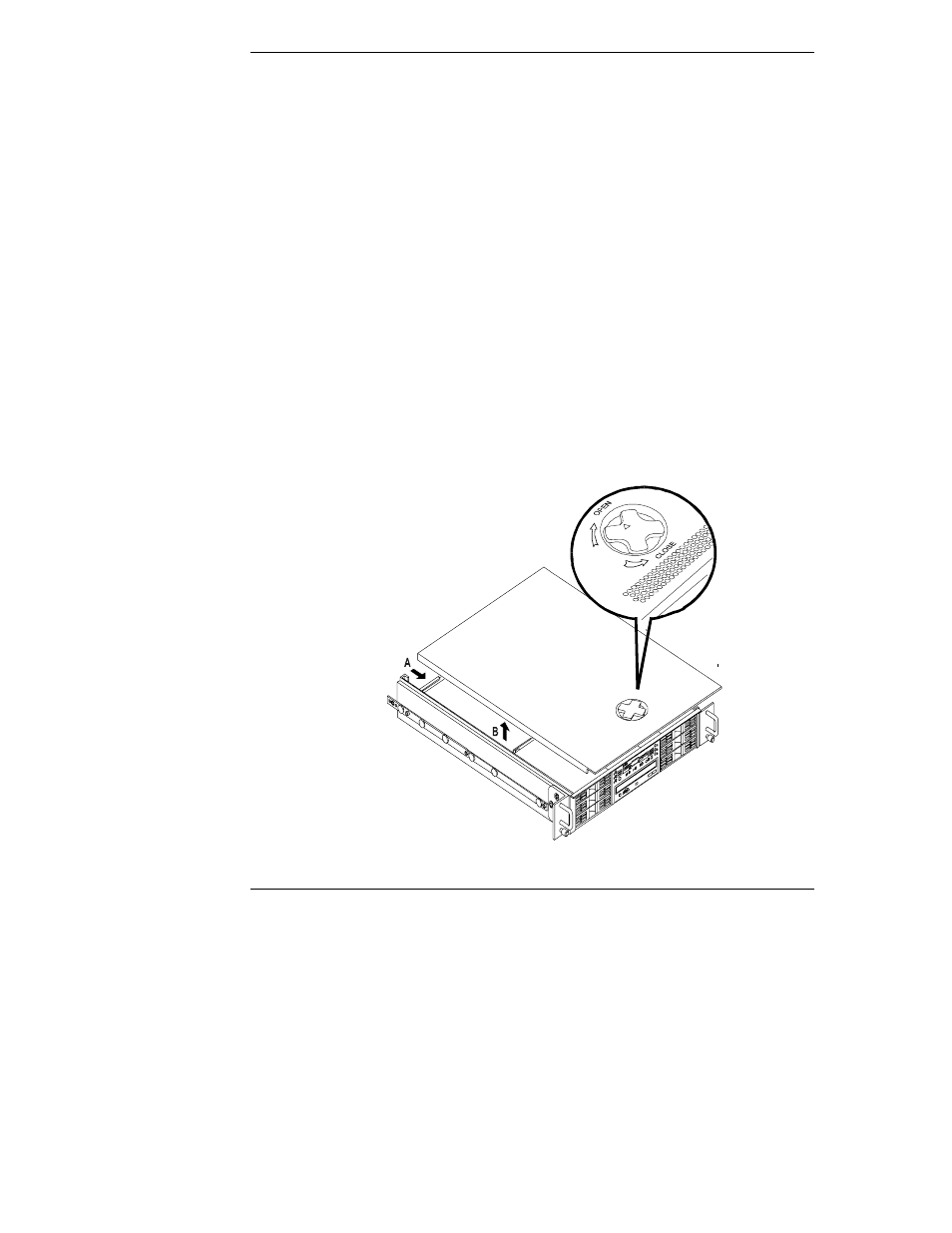

Figure 2-2. Removing the Top Cover
