13 Alternative Rack Mounting (4-Post)
Introduction
This chapter provides the instructions for mounting the HP Netserver in an older
4-post HP Systems rack, as shown in Figure 13-1. If you have the newer 4-post
HP System/E or System/U rack or a third-party non-threaded 4-post rack, see
Chapter 7, "Rack Mounting the HP Netserver (4-Post)." If you are mounting the
Netserver in a 2-post non-HP rack, see Chapter 8, "Rack Mounting the HP
Netserver (2-Post)," or refer to the documentation in the appropriate rack
accessory kit.
If you want to install the HP Netserver in a third-party rack not covered in this
guide, you may find relevant information on HP’s web site at the following URL:
http://www.hp.com/netserver/support
a
b
d
e
Characteristics of
HP System Rack:
a. 3-Cornered Columns
b. Fan-Only Vent
c. "HP Systems" Name Plate
d. EIA Units Marked by Triangles
e. Anti-Tip Foot Extends
Out Front Only
c

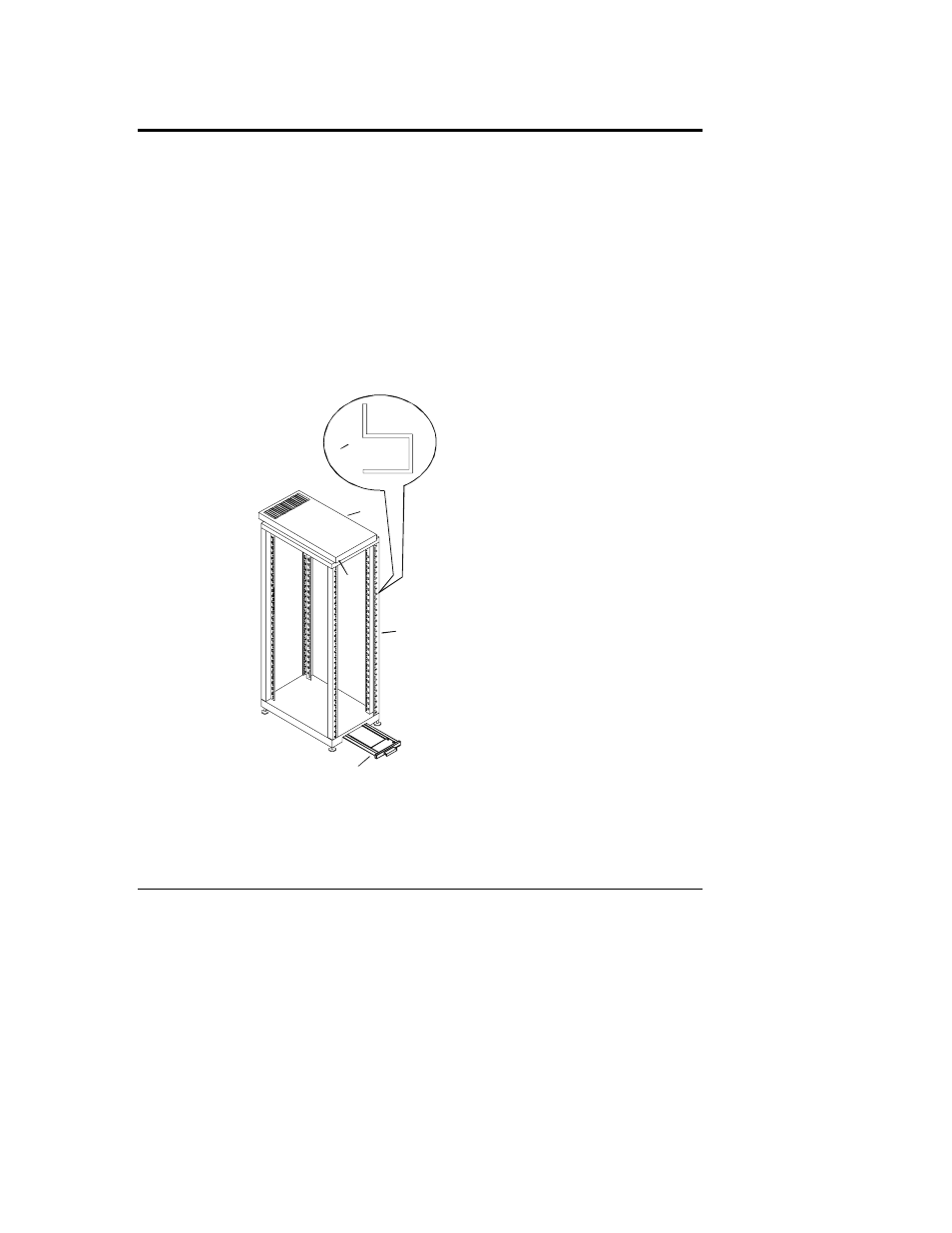

Figure 13-1. HP System Rack
The HP Netserver LP 2000r rack mount kit requires two EIA units of space in the
rack. Before mounting the Netserver, plan for the Netserver’s location in the rack
relative to other rack components. Proper placement is vital both for safety and
