Chapter 4 Installing Additional Memory
33

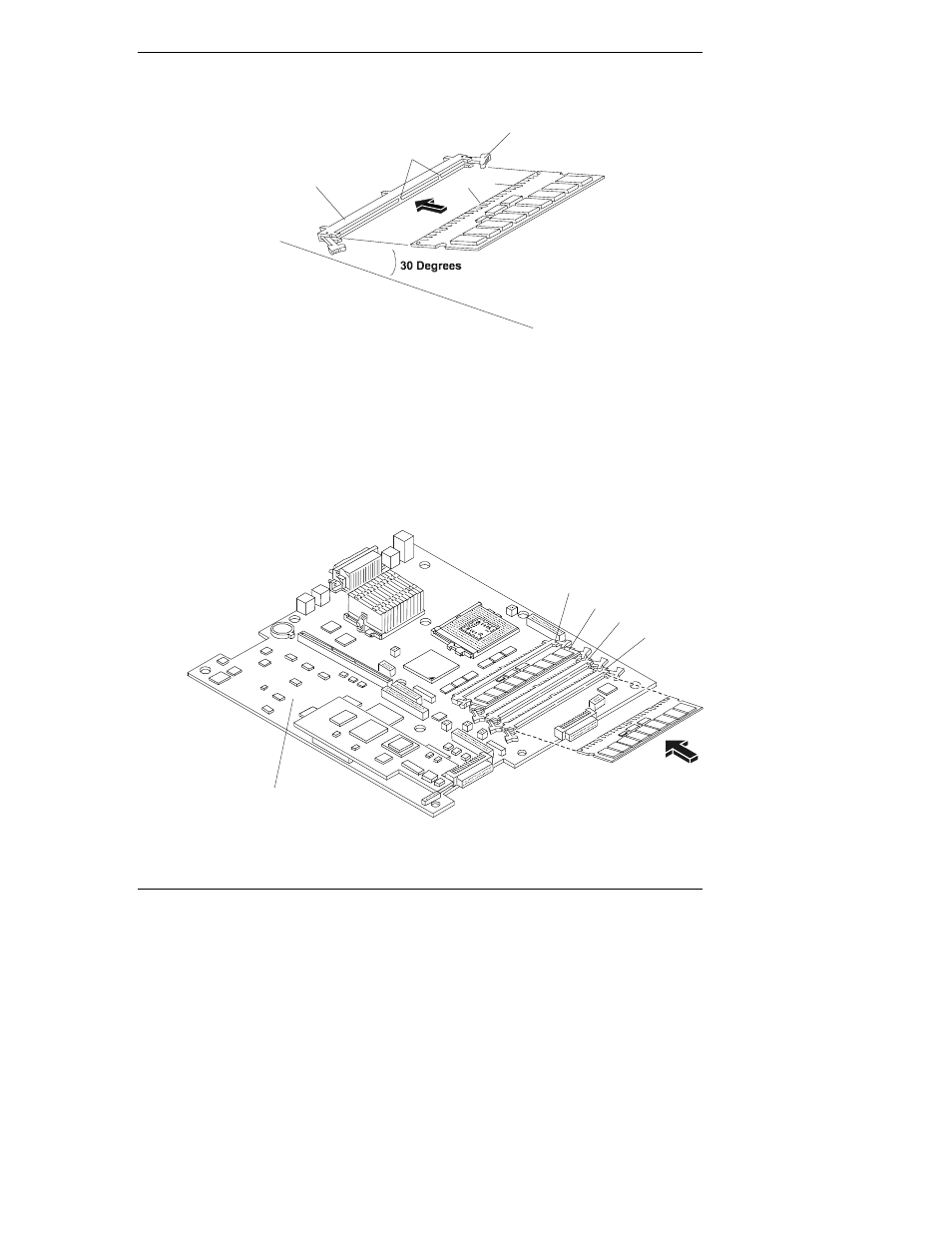

9. Align the notches on the DIMM with the keys on the slot. See Figure 4-3.
Retaining Latches (2)
DIMM Slot
Keys
Notches
Figure 4-3. Aligning the DIMM
10. Hold the DIMM at approximately 30
°
to the system board and press the
DIMM firmly and evenly into the slot until the retaining latches close.
See Figures 4-3 and 4-4.
It is important to hold the DIMM firmly with both hands and use even
pressure so as not to bend or break the DIMM connector during
installation. If the latches do not close, the DIMM is not inserted correctly.
11. Repeat Steps 7-10 to install additional DIMMs for your memory
configuration.
DIMM
Slots
0
1
3
2
System Board
Figure 4-4. Inserting DIMMs
