Chapter 2 Opening and Closing the HP Netserver
12
Removing the Air Flow Guide
The air flow guide directs air onto the processor heatsinks. The air flow guide sits
directly over the DIMMs and must be removed to install or remove DIMMS.
1. Unplug the air flow guide fan cable from the system board. See Figure 2-4.
2. Lift up the air flow guide to remove it. See Figure 2-4.

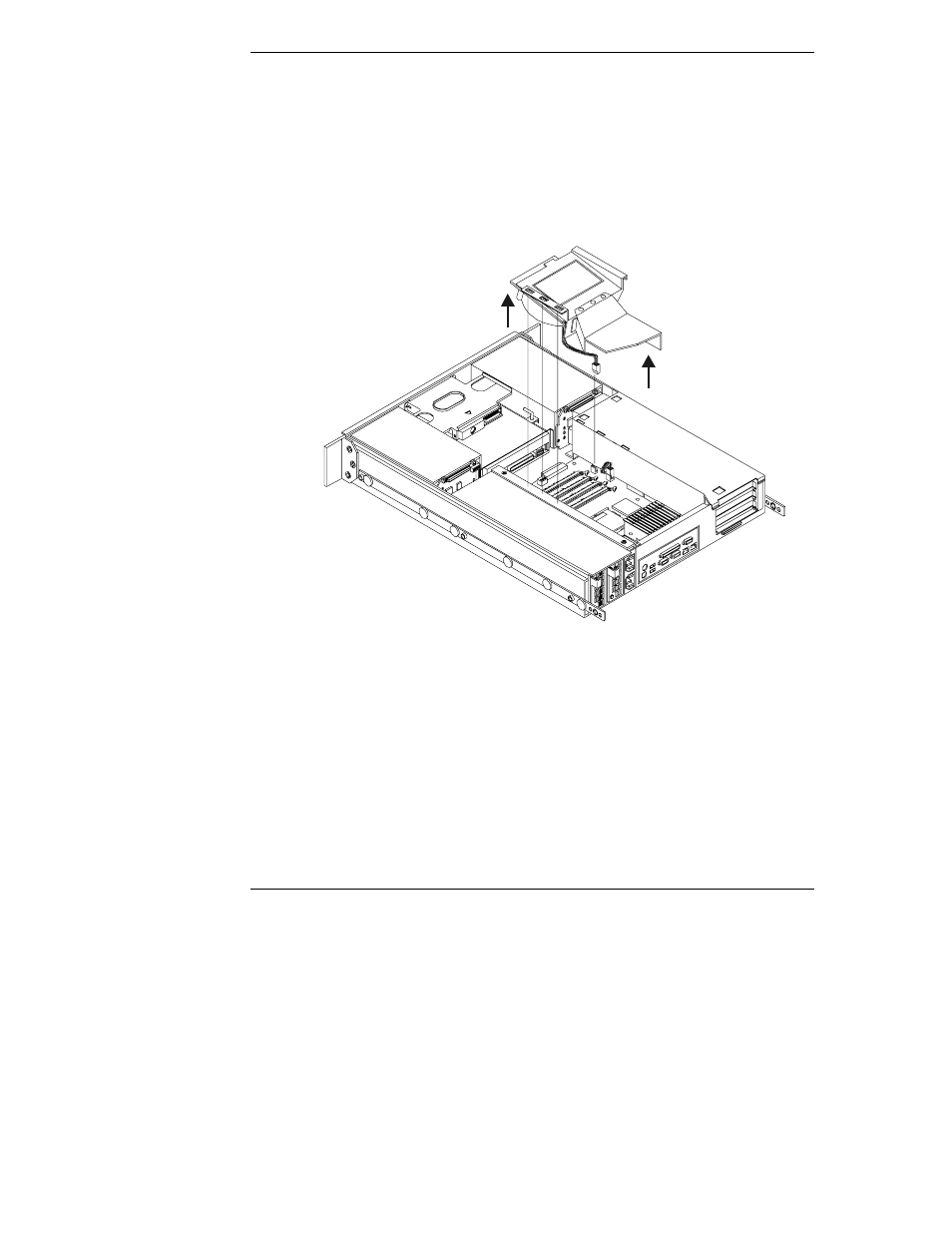

Figure 2-4. Removing the Air Flow Guide
Replacing the Air Flow Guide
To replace the air flow guide, simply reverse the steps described in the preceding
procedure.
