Chapter 5 Installing Additional Boards
42
9. When you have completed the PCI card installation, replace the PCI card
cage and reconnect the card cage fan to the system board:
a. Align the PCI card cage with the guides on the and left side of the
chassis. Lower the PCI card cage and plug the fan into the connector on
the system board. See Figure 5-6.
b. Press down on the top of the card cage to plug the riser card into the
motherboard.
c. Make sure that the front edge of the PCI card cage is seated on the
guide pin. See Figure 5-6.
Guide Pin

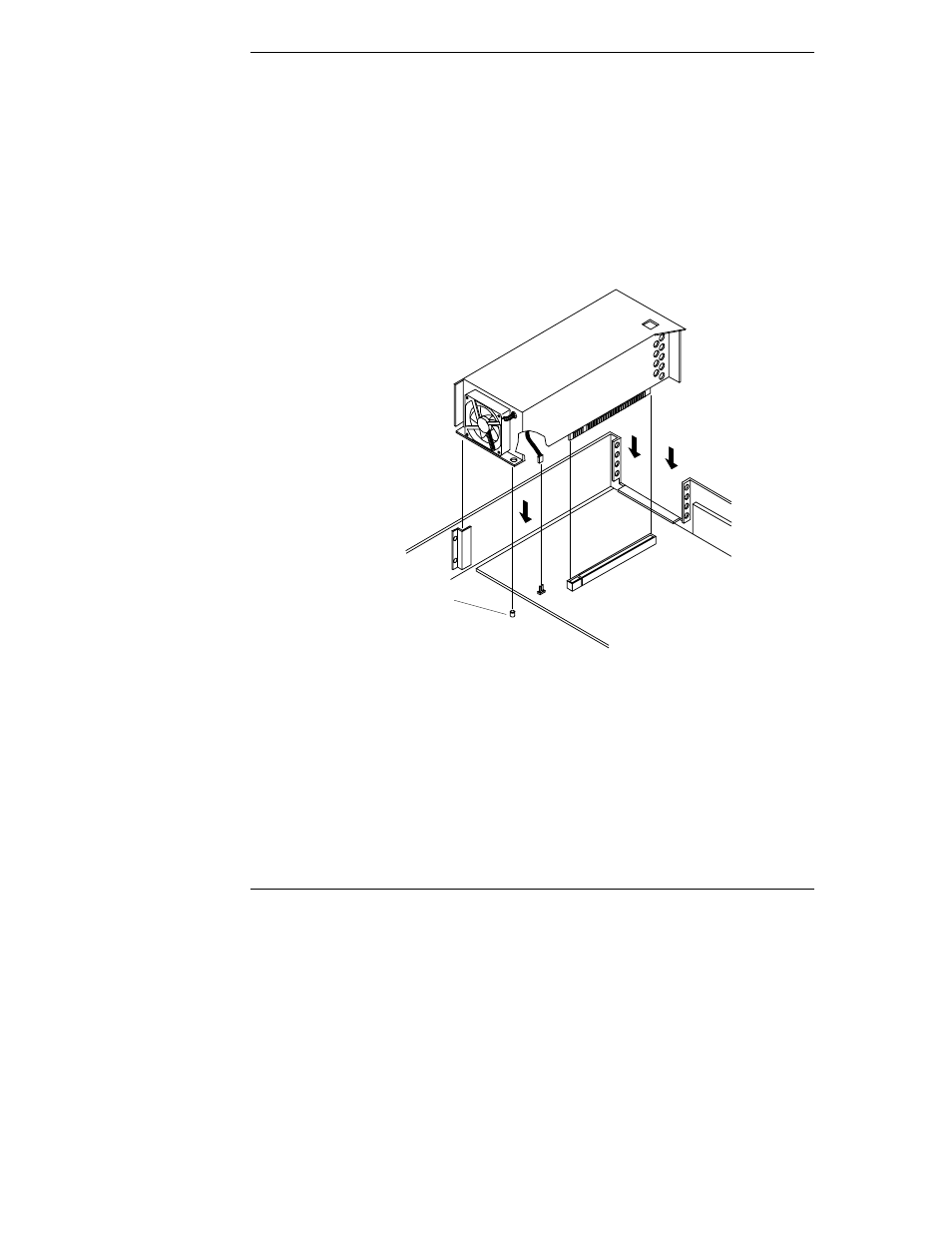

Figure 5-6. Replacing the PCI Card Cage
