1
1 Controls, Ports, and Indicators
Introduction
Before operating the HP Netserver LP 2000r, familiarize yourself with the
Netserver’s controls, ports, and indicators, as shown in Figures 1-1 through 1-3.
Front Panel
The front panel of the HP Netserver provides the controls and indicators
commonly used when operating the Netserver.
SCSI Drives SCSI Drives Control Panel Indicators
Flexible Disk
CD-ROM Drive
Power Switch

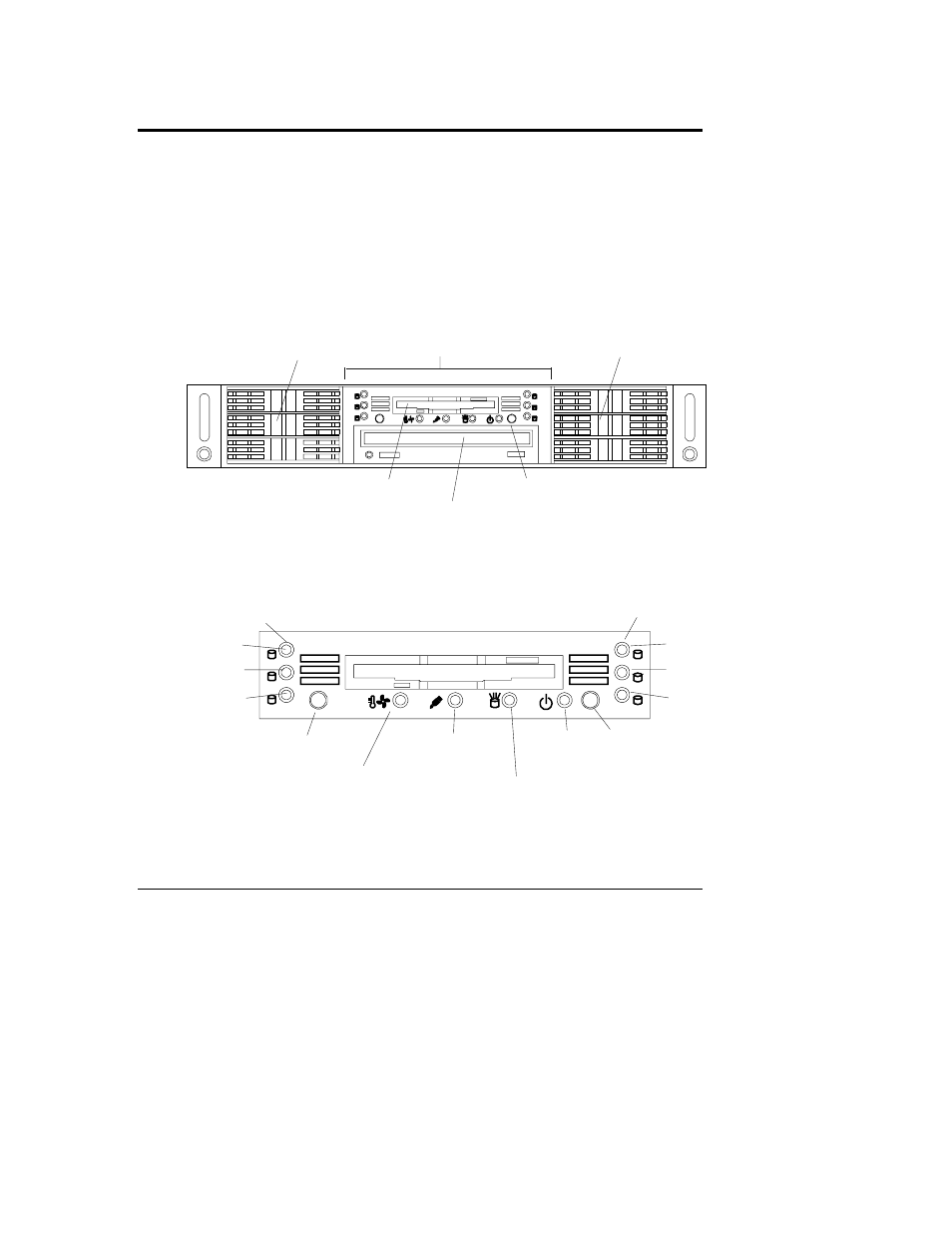

Figure 1-1. Front Panel
Reset Switch
Temperature
& Fans LED
SCSI Activity LED
Redundant
Power Supply
LED Power
Switch Power
LED
SCSI Drive Status LEDs
Disk 0
Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
SCSI Drive Status LEDs
Figure 1-2. Control Panel Indicators
