Chapter 2 Opening and Closing the HP Netserver
13
Removing the PCI Card Cage
The PCI card cage contains the 3 PCI card slots on a riser board, and must be
removed in order to access PCI cards. Remove the air flow guide before removing
the PCI card cage (see “Removing the Air Flow Guide” earlier in this chapter).
1. Disconnect the PCI card cage fan from the system board.
See Figure 2-5.
2. Grip the PCI card cage by the fan and back edge, and firmly lift the cage
straight up to remove it. See Figure 2-5.
In lifting the card cage, you will feel initial resistance as the riser card
disconnects from the system board.
Lift Cage by Fan and Back Edge

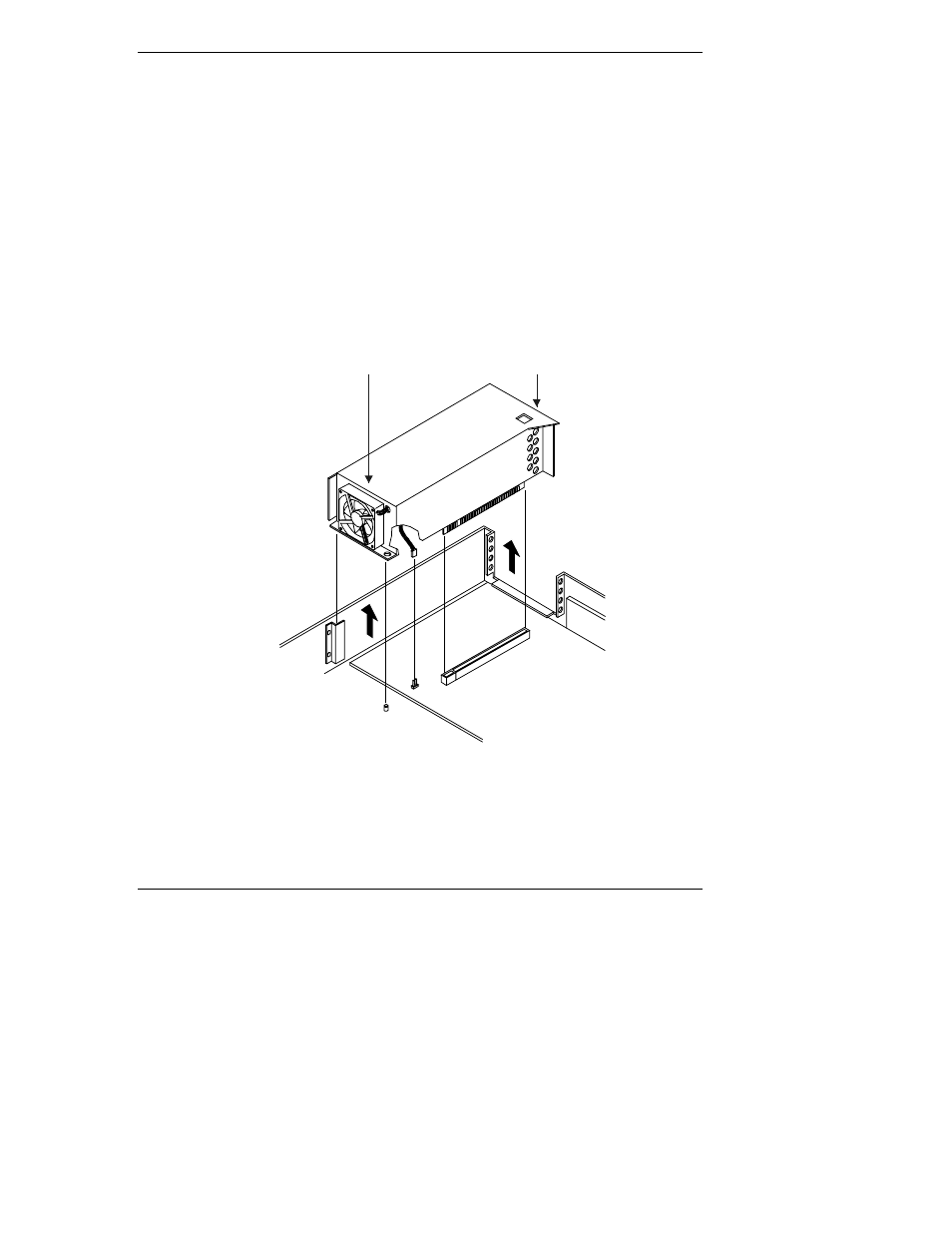

Figure 2-5. Removing the PCI Card Cage
