Chapter 5 Installing Additional Boards
37
Remote Control Card
The HP Netserver LP2000r supports the HP Remote Control card, which uses the
HP TopTools remote management software. The Remote Control card requires an
I
2
C connection to the system board, provided by the I
2
C connector on the daughter
board (Integrated Remote Assistant circuitry) that is installed on the system board.
See Figure 5-1 and Figure 5-2.
For more information on the HP TopTools remote management function, refer to
Chapter 10, "Configuring the HP Netserver" and Chapter 11, "HP Netserver
Online Documentation CD-ROM."
I C
Connector 2

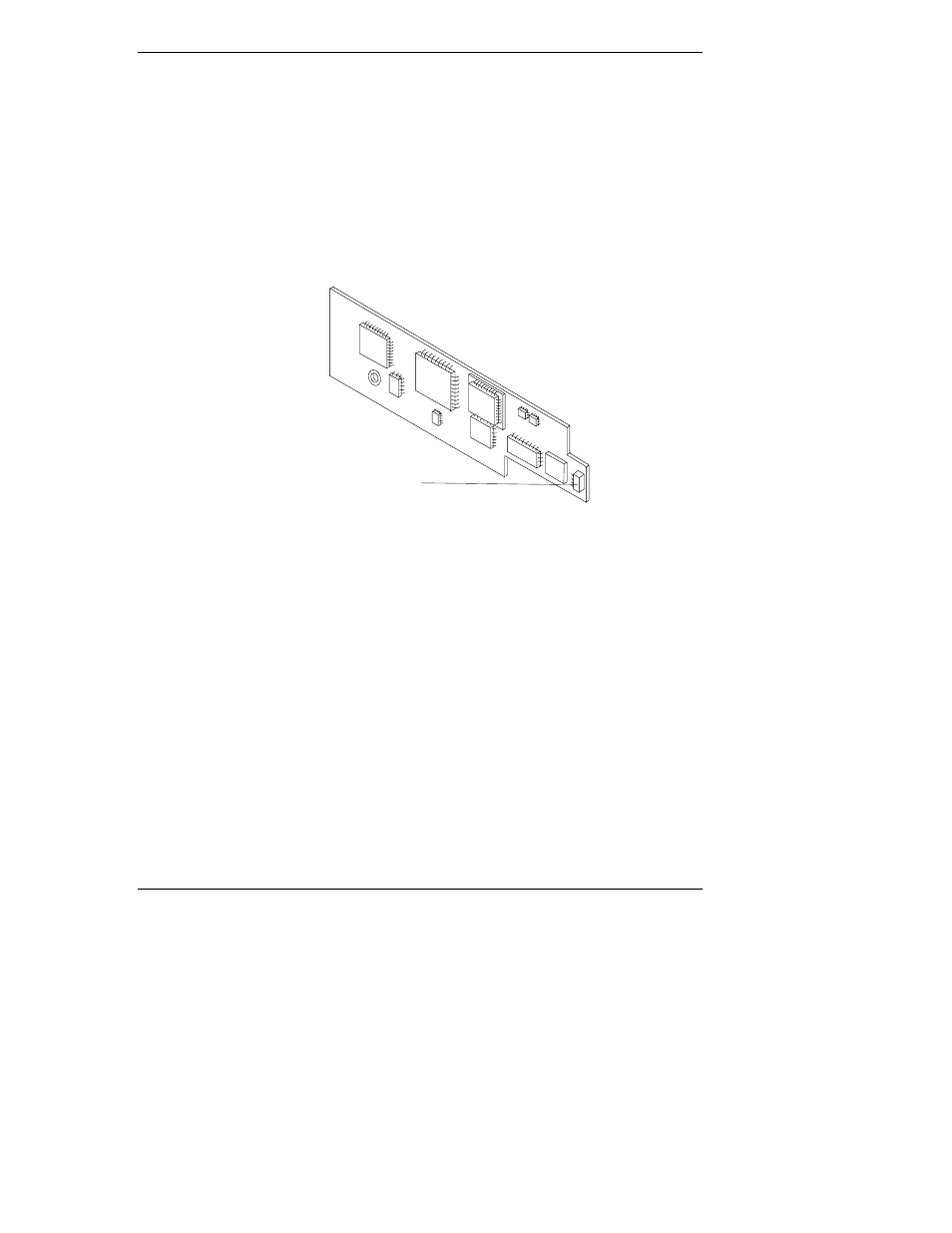

Figure 5-1. Location of I 2 C Connector on Integrated RA Board
