Chapter 7 Rack Mounting the HP Netserver (4-Post)
58
Marking Rack Columns
To make it easier to install the slides in the rack, you may want to mark the rack
columns to indicate the server placement.
Use the HP Rack Configuration Tools to determine where in the rack to mount the
HP Netserver. The tools are available at:
http://www.hp.com/netserver/support
1. Use a marking pen or masking tape to mark the server position on the face
of the front columns and the inside of the rear columns. The example in
Figure 7-2 shows a HP System /E or /U rack.
Mark this face of
the columns with
masking tape
or marker pen.
Right
Side Left
Side
Front of
Rack
Rear of
Rack
" # " represents
the EIA unit
numbers on the
rack columns.
3rd Hole
From Bottom
1st Hole
From Bottom
Bottom of
HP NetServer
#
#
#
#
#
#
Masking
Tape or
Marker

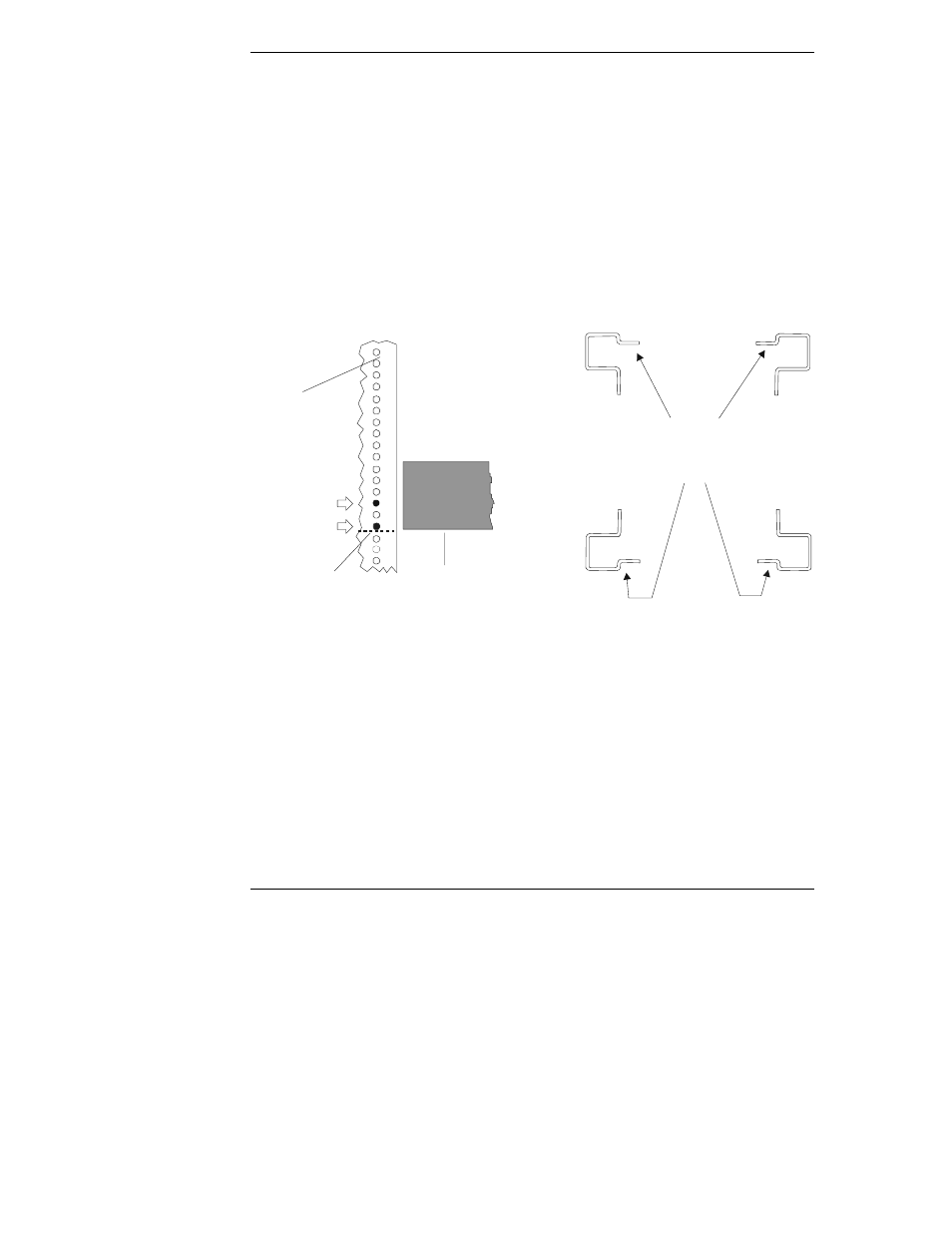

Figure 7-2. Marking Rack Columns
