Chapter 6 Installing an Additional Processor
48
7. Open the ZIF (Zero Insertion Force) lever. Then lift the terminator out of
the socket and place it on anti-static surface or container. See Figure 6-2.
To open the ZIF lever, pull the lever out away from the ZIF socket and
raise it 90
°
to the system board.
ZIF Lever
Terminator
Processor
Socket

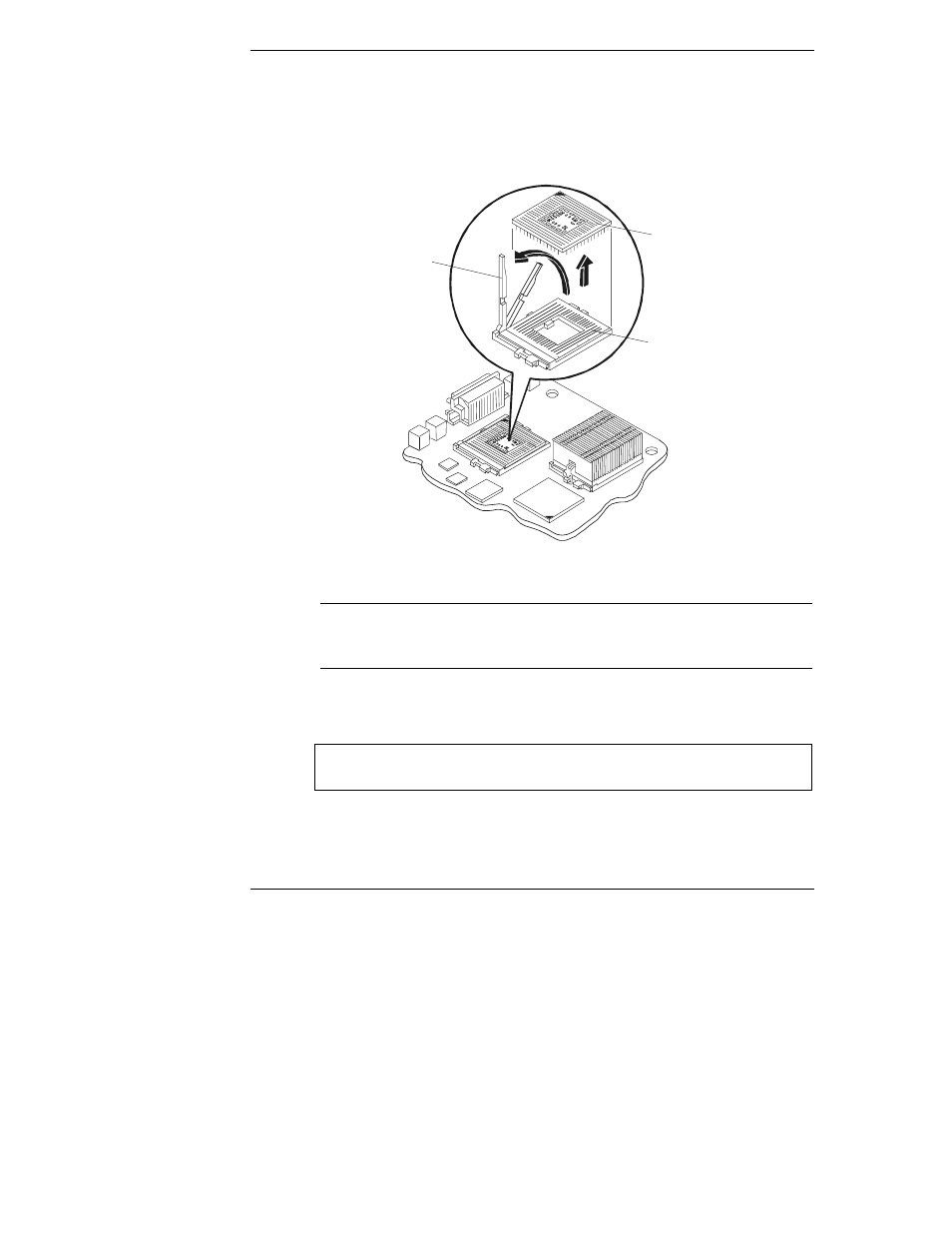

Figure 6-2. Removing the Terminator
NOTE Keep the terminator for future use. The terminator must be
installed in the secondary processor socket when only one
processor is used or the HP Netserver will not operate properly.
8. Align the second processor over the empty processor socket, as shown in
Figure 6-3.
CAUTION Ensure that you the align pin-1 of the processor with pin-1 of
the processor socket or pin damage will occur.
