10818

1

6

2

3

4

5

8

9

7

1

ID beacon

2

FC drive port TD3 LED

3

FC drive port TD2 LED

4

FC drive port TD1 LED

5

FC drive port TD0 LED

6

Ethernet port LED

7

External port FC1 LED

8

External port FC0 LED

9

Power LED

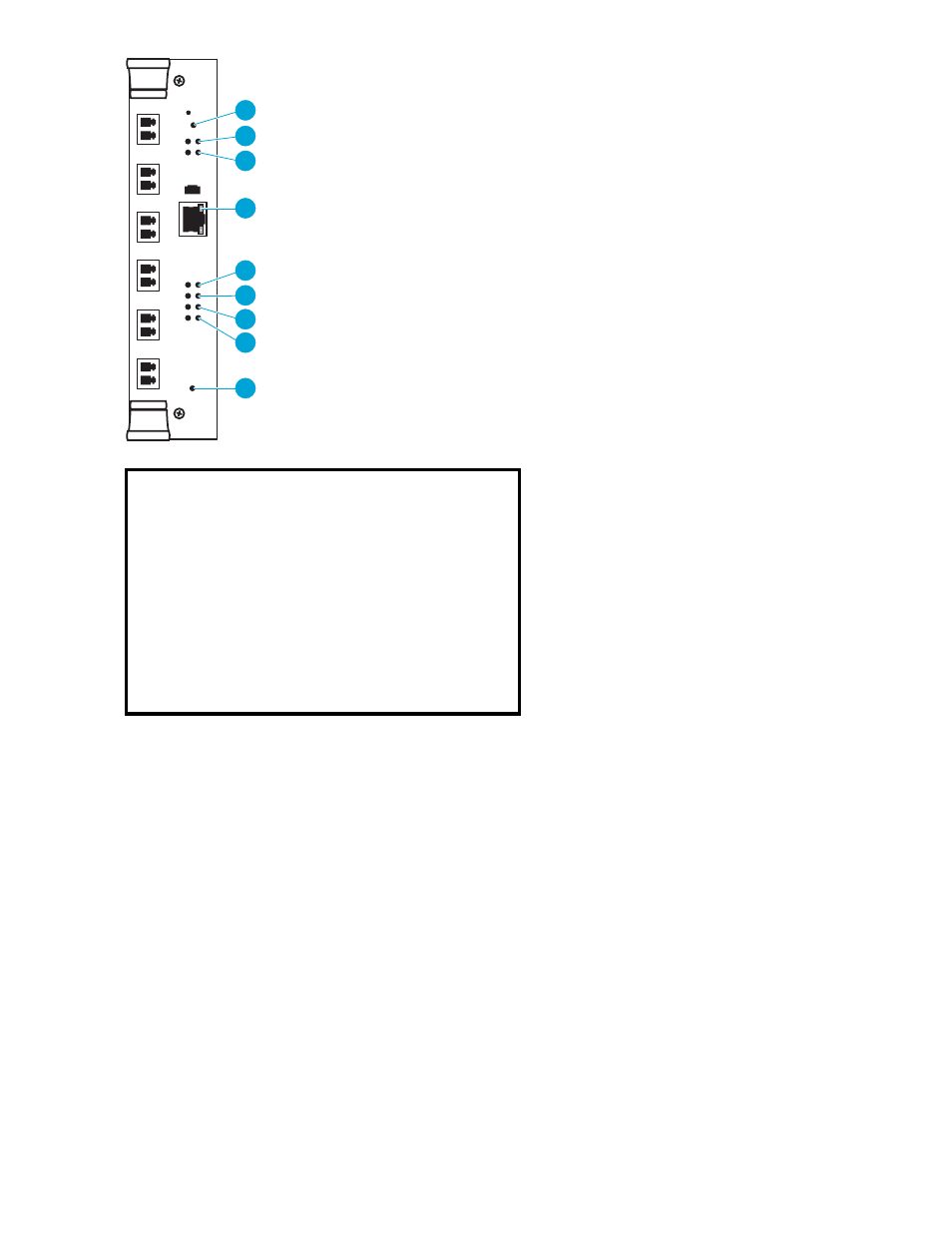

Figure 55 e2400-FC 4G interface controller LEDs

Basic troubleshooting

Simplify the installation by reducing it to the most basic configuration. Then, add elements one at

a time, verifying the operation after each step.
Basic troubleshooting includes verifying the setup and the connections, including:

Verifying SCSI bus configuration

Verifying FC port connection

Verifying FC and SCSI devices in Windows NT

Verifying the interface controller configuration

Verifying devices

Verifying host configuration

Verifying HBA device driver information

Verifying serial port configuration

Each of these topics is discussed in the following sections.

82

Maintenance and troubleshooting
