1

2

1

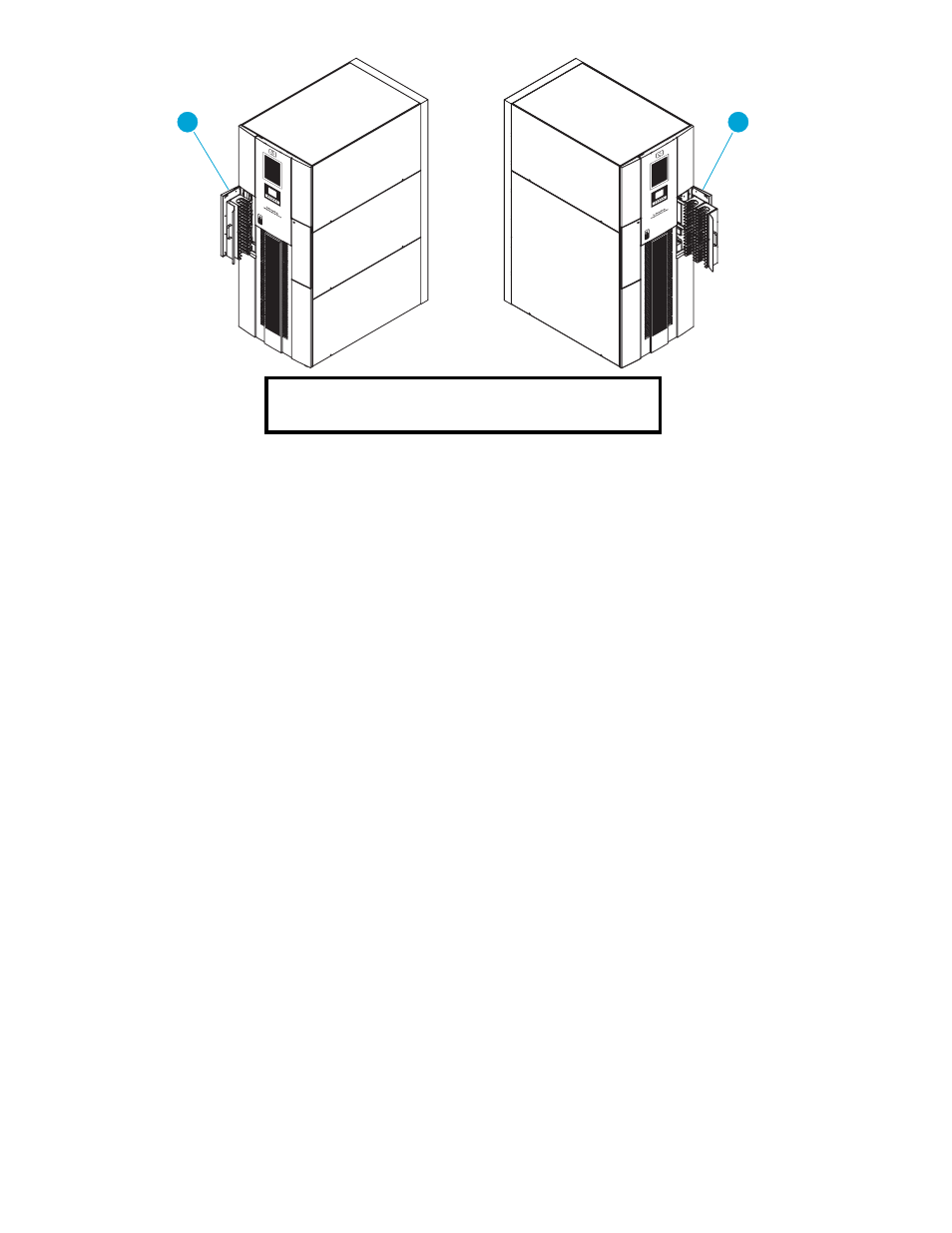

Left load port (16 SDLT or 18 Ultrium)

2

Right load port (32 SDLT or 36 Ultrium)

Figure 7 Load ports (left and right)

Card cage and controllers

The library card cage is located in the top of the library cabinet, above cluster 0.

The card cage holds up to six e2400-160 FC and/or e2400-FC 2G interface controllers.

It holds a fan, and two power supplies.

In a non-SIPP library the card cage contains the e1200-160 library robotics controller.

In a library that contains an e2400–FC 4G interface controller in cluster 0, the card cage houses

the Interface Manager card.

See

Figure 8

for a sample card cage.

22

Library overview
