11 e2400-fc 4g interface controller – HP ESL E-series Tape Libraries User Manual

Page 25

background image

10817

4

5

6

7

8

9

1

2

3

1

Reset button

2

Serial port

3

Ethernet port

4

FC port 0 (external connection)

5

FC port 1 (external connection)

6

Tape drive FC port 0 (internal connection)

7

Tape drive FC port 1 (internal connection)

8

Tape drive FC port 2 (internal connection)

9

Tape drive FC port 3 (internal connection)

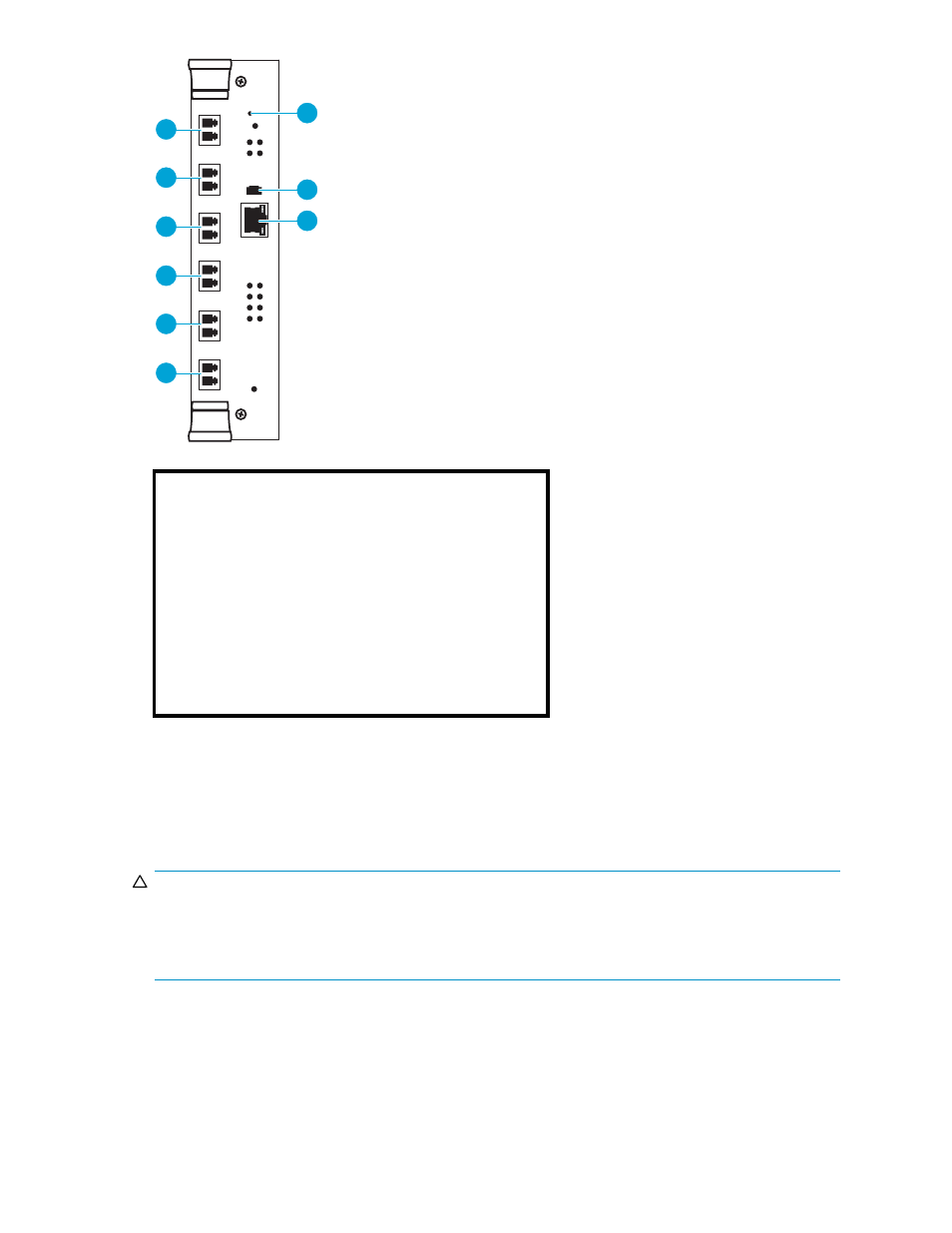

Figure 11 e2400-FC 4G interface controller

Reset button

To force a manual reboot of the FC interface controller, use the reset button (see

Figure 9

,

Figure 10

, or

Figure 11

). Press the button with a paper clip or other small object. You can also select the Reboot menu

option in the Command View TL, as described later in this manual.

CAUTION:

Using the Reset button during an ongoing data backup, restore, or other data transfer process, can result

in a disruption of that process and a loss of data. Before selecting the Reset button, verify that no

data is currently transferring through the FC interface controller by visually inspecting the Activity LEDs

of all I/O ports on the FC interface controller.

Power indicator

The interface controller has one power LED.

Green - Power has been applied to this module

Yellow - Power-On-Self-Test (POST) in process or processor problems

HP StorageWorks

25
