72 Managing switches
Configured Zonesets data windows
The Configured Zonesets data window displays all zone sets, zones, aliases, and zone membership in the
zoning database, shown in Figure 32 . Click the Configured Zonesets data window tab in the faceplate
display to open the Configured Zonesets data window. Click the Active Zonesets data window tab in the
topology display to view the active zone set in the Active Zonesets data window.
The Configured Zonesets data window uses display conventions for expanding and contracting entries that
are similar to the fabric tree. An entry handle, located to the left of an entry in the tree, indicates the entry
can be expanded. Click the entry handle, or double-click the following entries to expand or collapse them:
• A zone set entry expands to show its member zones.
• A zone entry expands to show its members by device port World Wide Name, or device port FC
address.
• The alias entry expands to show its entries.

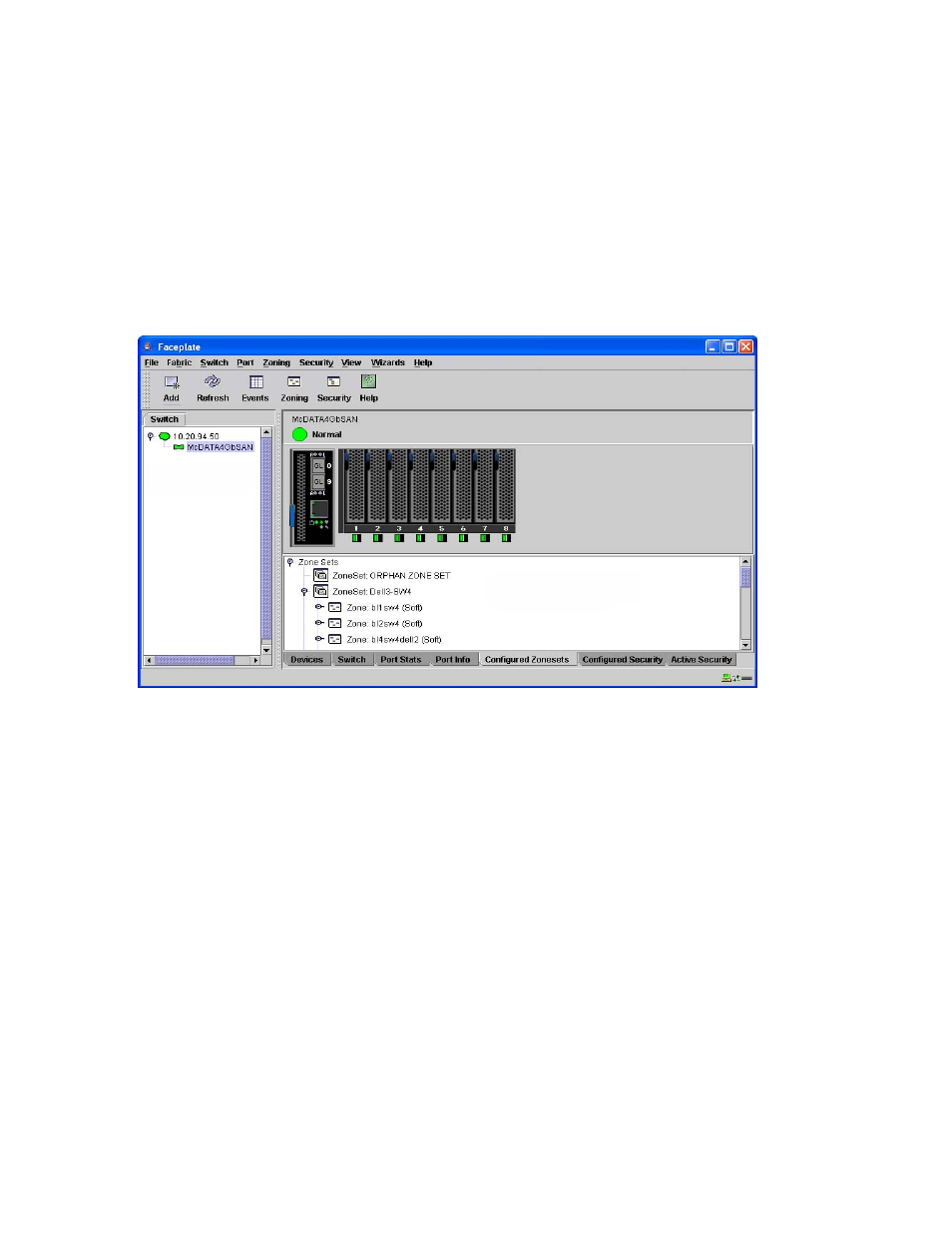

Figure 32 Configured Zonesets data window
