HP McDATA 4Gb SAN Switch for HP BladeSystem p-Class - Manual (Page 28)

28 Managing fabrics
Editing RADIUS server information
Editing information of a RADIUS server involves changing the configuration of a RADIUS server.

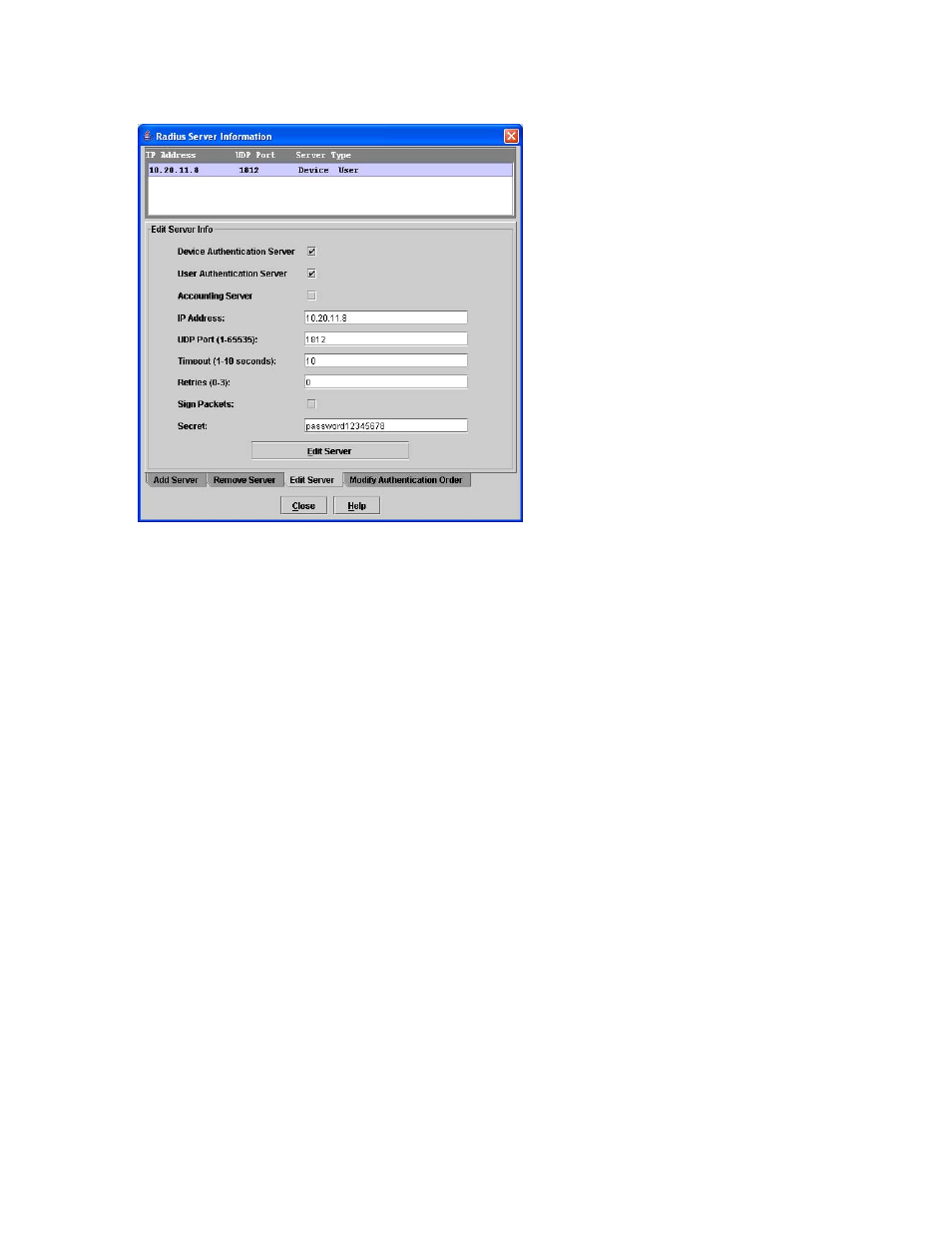

Figure 12 RADIUS Server Information dialog — Edit Server tab page
To edit information of a RADIUS server, perform the following procedure:
1. Select Switch > Radius Servers in the faceplate display.
2. Click the Edit Server tab in the Radius Server Information dialog shown in Figure 12 .
3. Select the server to be edited in server list at the top of the dialog.
4. Make changes to the IP Address, UDP Port, Timeout, Retries, and Secret fields.
5. Select the server type (Device, User, Account) and Sign Packet options.
6. Click Edit Server to save the changes.
7. Click Close to close the Radius Server Information dialog.
