McDATA® 4Gb SAN Switch for HP p-Class BladeSystem user guide 17
McDATA Web Server user interface
The McDATA Web Server application uses two basic displays to manage the fabric and individual
switches: the topology display and the faceplate display. The topology display shows all switches that are
able to communicate and all connections between switches. The faceplate display shows the front of a
single switch and its ports. Both displays share some common elements as shown in Figure 4 .

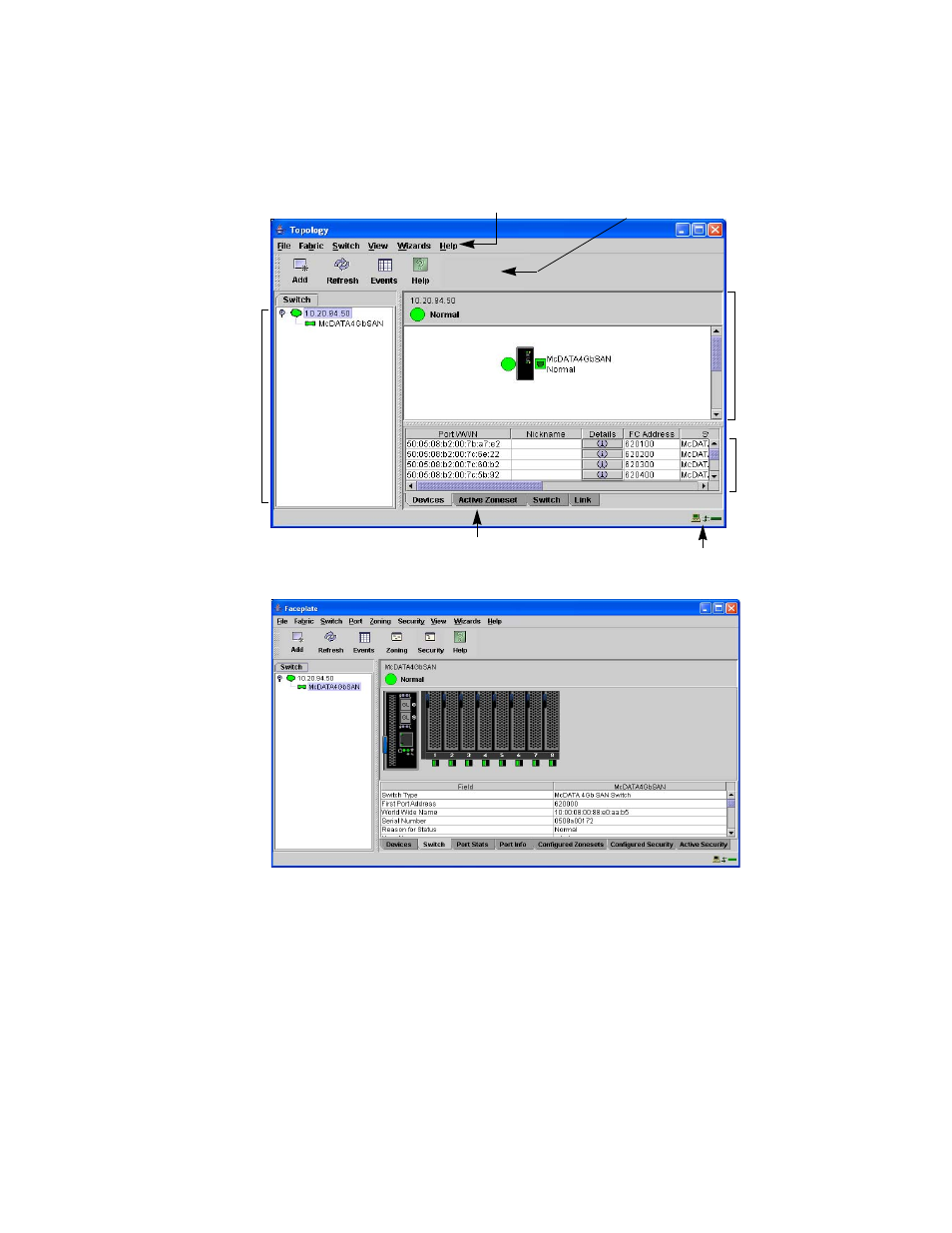

Figure 4 McDATA Web Server display elements
Menu bars
The menus and the options offered in them vary depending on the display. For example, the Port menu and
many of the Switch menu selections are available only in the faceplate display.
Menu
bar
Faceplate display
Topology display
Tool bar
Data
window
Graphic
window
Fabric
tree
Working status indicator
Data window tabs
