Configuring and Operating the 5157 Tape Drive
4-5
4.3 Overview of the Front Panel
The 5157 tape drive has the following indicators and controls for
operating the drive (Figure 4-5):

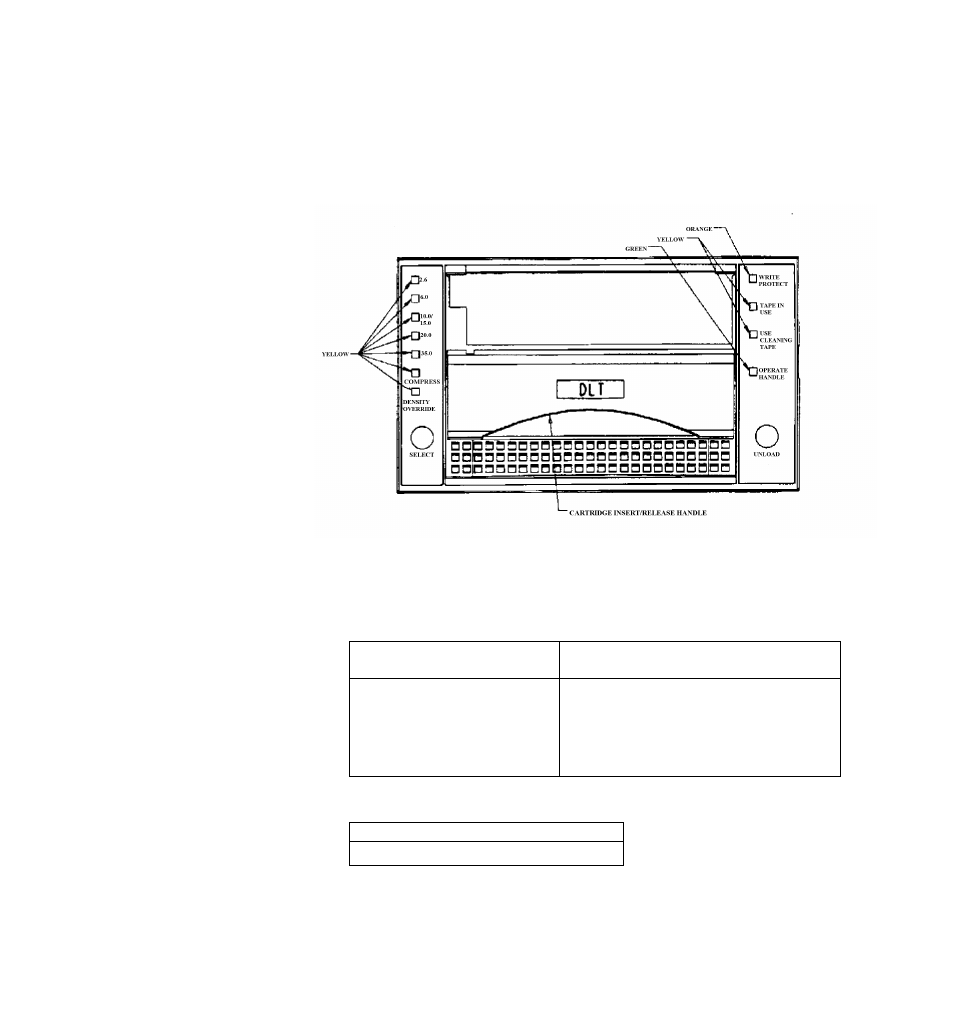

Figure 4-5 The 5157 tape drive indicators and controls.
Table 4-5 5157 Tape Drive Indicators
Indicators (Left Side of
Drive) Indicators (Right Side of Drive)
Density Indicators 2.6 Write Protected indicator
Density indicators 6.0 Tape in Use indicator
Density indicator 10.0/15.0 Use Cleaning Tape indicator
Density indicator 20.0 Operate Handle indicator
Density indicator 35.0
Compress Override indicator Beeper (audible) not visible
Controls
Density Select button Unload button
Cartridge insert/release handle
