HP 3000 Enterprise Virtual Array - Manual (Page 105)

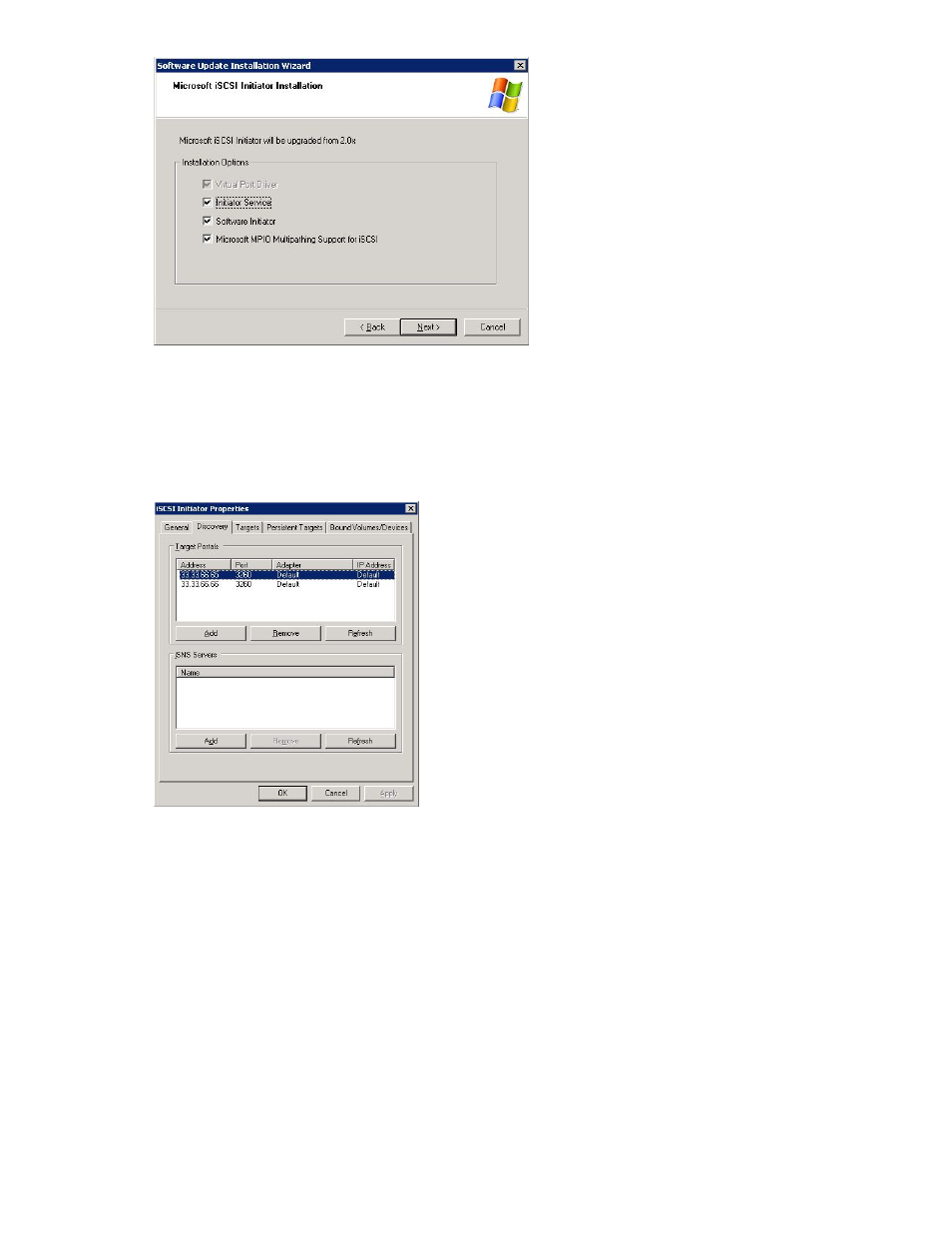

Figure 52 Software update installation wizard
.
Start the iSCSI Initiator from the Start > All Programs menu. At the Discovery tab, add the
mpx100/100b iSCSI port IP addresses that will serve storage to this server. Note that depending on
the Fibre Channel and IP connections to and from the mpx100/100b and to the iSCSI Initiator, the
mpx100/100b iSCSI port may have more than one target (see
Figure 53 ). Click Next to display the
Targets tab.
Figure 53 Properties screen for iSCSI Initiator
.
The Targets tab ( Figure 53 ) displays all iSCSI targets presented by all discovered mpx100/100b
iSCSI ports in the previous step. Double-click a target name to open the Log On to Target window,
and select the Automatically restore this connection when system boots and Enable multi-path check
boxes (see
Figure 54 ).
The Auto Restore check box adds the target name under the Persistent Targets list.
EVA iSCSI Connectivity User Guide 105
