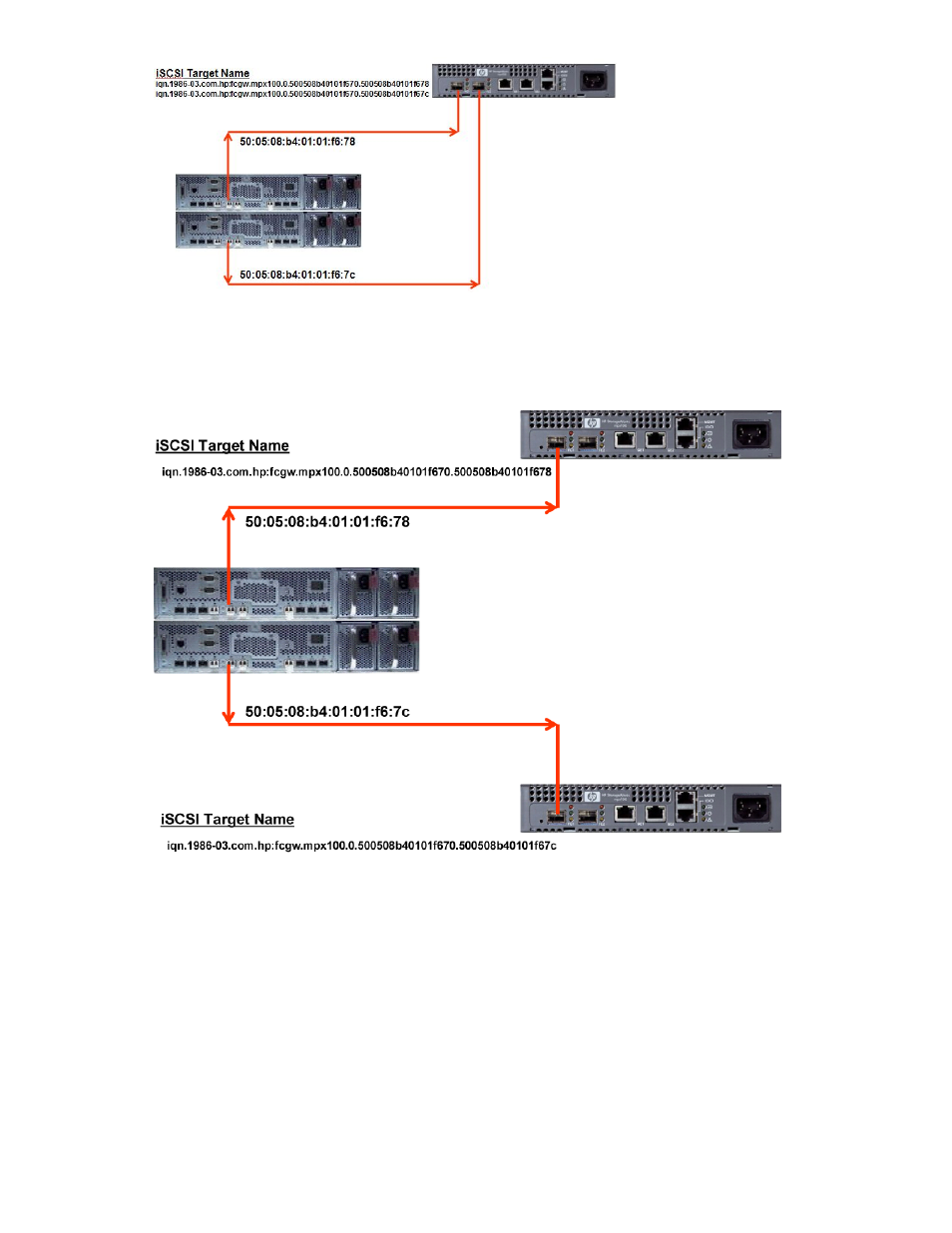

Figure 45 Example: Single mpx100 multipath—iSCSI target configuration
.
As with any other Fibre Channel host entry within HP Command View EVA, when a LUN is presented
to the iSCSI host entry the LUN is presented to all mpx100/100b FC port WWPNs contained in that
entry (see
).
Figure 46 Example: Dual mpx100 multipath — iSCSI target configuration
.
Understanding iSCSI multipathing with the mpx100/100b
Once the EVA target and LUNs are presented to the mpx100/100b FC port WWPNs, they can be
presented to iSCSI Initiators through the mpx100/100b iSCSI GbE ports.
Although each Fibre Channel target and its LUNs are received by the mpx100/100b through separate
FC ports, all targets are presented from each iSCSI port of the mpx100/100b to the IP network (see
).
