HP 3000 Enterprise Virtual Array - Manual (Page 62)

NOTE:
Click Connect to add mpx100's/100b's to be managed simultaneously.
5. Click Connect to display the selected HP mpx Manager. A typical mpx Manager is displayed
(
Figure 22 ).

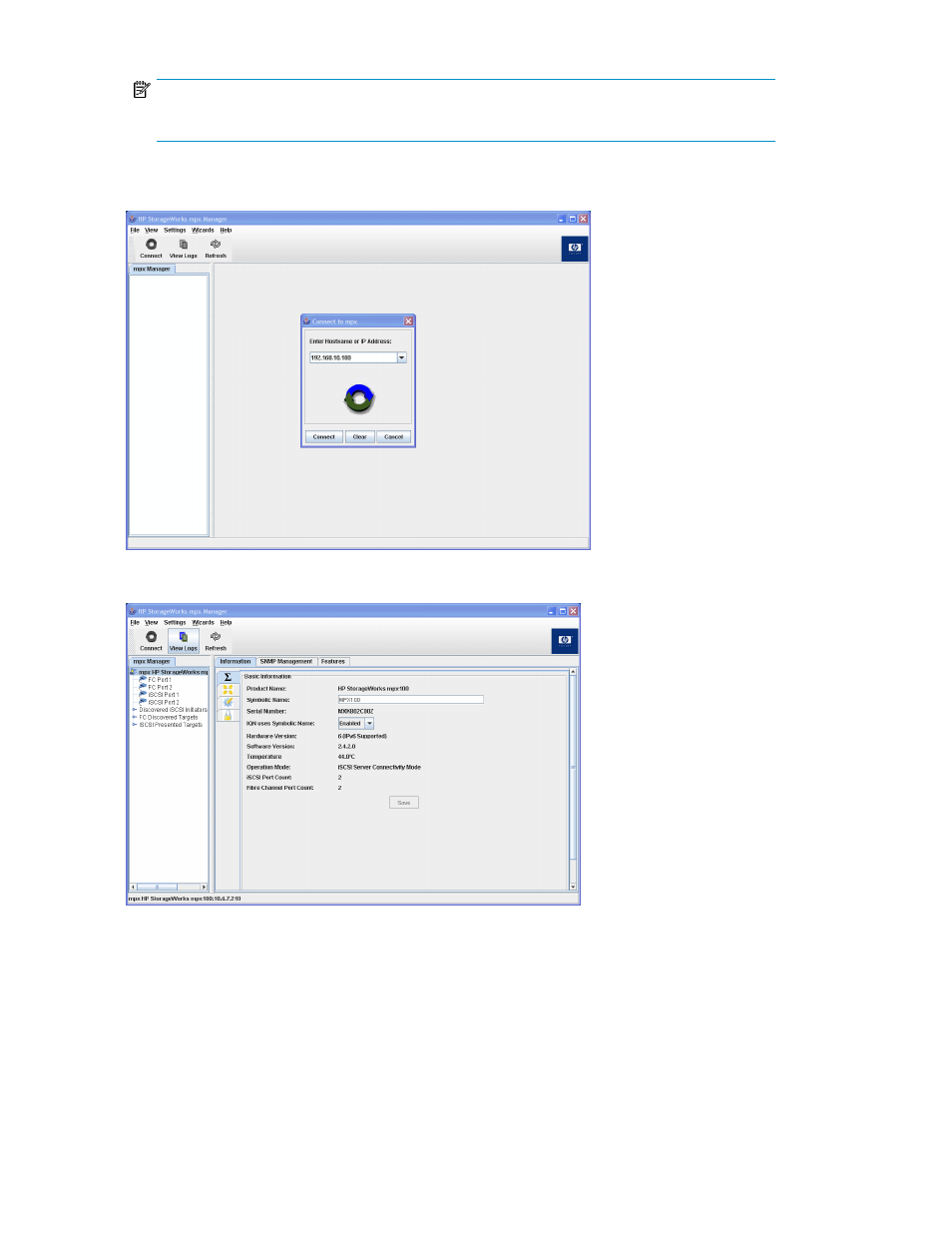

Figure 21 Connect to the mpx100/100b
.
Figure 22 Typical mpx Manager display
.
Starting HP StorageWorks mpx Manager for Linux
To start HP StorageWorks mpx Manager for Linux:
1. Enter the mpx100/100b command: ./HPmpx100Manager. The
Connect to the mpx100/100b window is displayed (
Figure 21 on page 62).
Configuring the mpx100/100b 62
