HP Storage Mirroring V5.1 Software - Manual (Page 58)

8 - 4
5. On your cluster (source and/or target), you need to disable the standard Storage Mirroring
connection controls so that the MSCS resource that you will be configuring later can control the
Storage Mirroring connections.

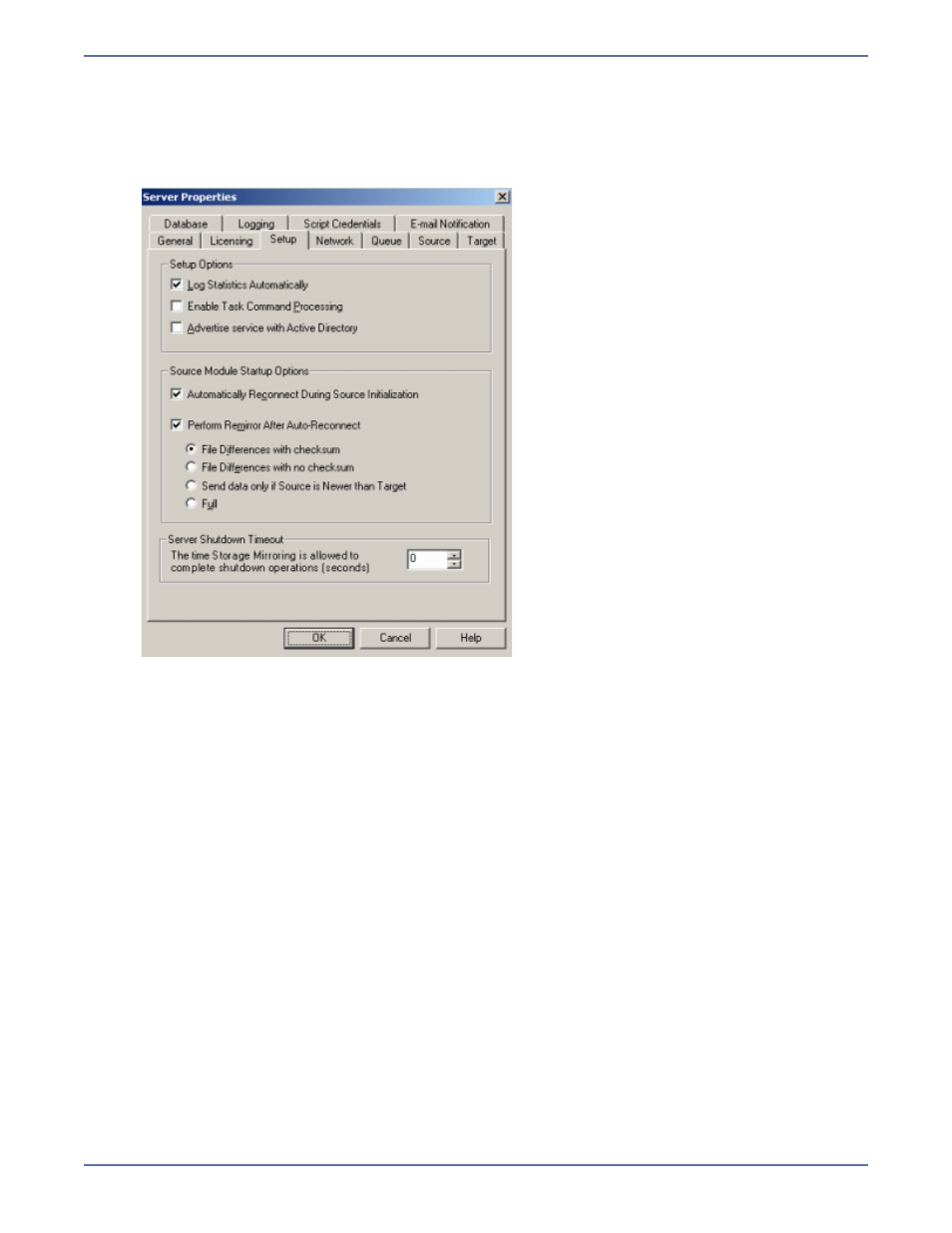

a. In the Management Console, right-click a node of the source cluster and select Properties.
b. Select the Setup tab.
c. By default, the Automatically Reconnect During Source Initialization check box will be
selected. Disable this option by clearing the check box.
d. Click OK to save the changes.
e. Repeat these steps on each node of the cluster(s).
6. If your source is a standalone server, establish your connection through the Connection Manager,
selecting the virtual server network name for the Target Server and the virtual server IP
address for the Route. See Establishing a Connection Using the Connection Manager on
page 6-1 for details on establishing a connection through the Connection Manager.
7. If your source is a cluster, establish your connection by creating and bringing online a
Double-Take Source Connection resource.
a. From the Cluster Administrator, right-click on the group and virtual server you are protecting
and select New, Resource.
b. Specify the following fields on the New Resource dialog box.

Name—Specify a name that indicates this is the Storage Mirroring virtual server
connection.

Description—You can optionally add a more detailed description for this resource.

Resource type—Specify Double-Take Source Connection.

Group—The resource group name should be selected. If it is not, select the correct group
name.
c. Click Next to continue.
d. Verify that all of the cluster nodes appear as Possible Owners and click Next to continue.
e. The resource is dependent on the physical disk and network name resources. Select these
two resources so that the Double-Take Source Connection resource is dependent on both of
them. Click Next to continue.
