8. USING THE CONFIGURATION MODULE
8.1 Loading a Configuration
Loading a Configuration from the Configuration
Module into the PP-32 Controller:

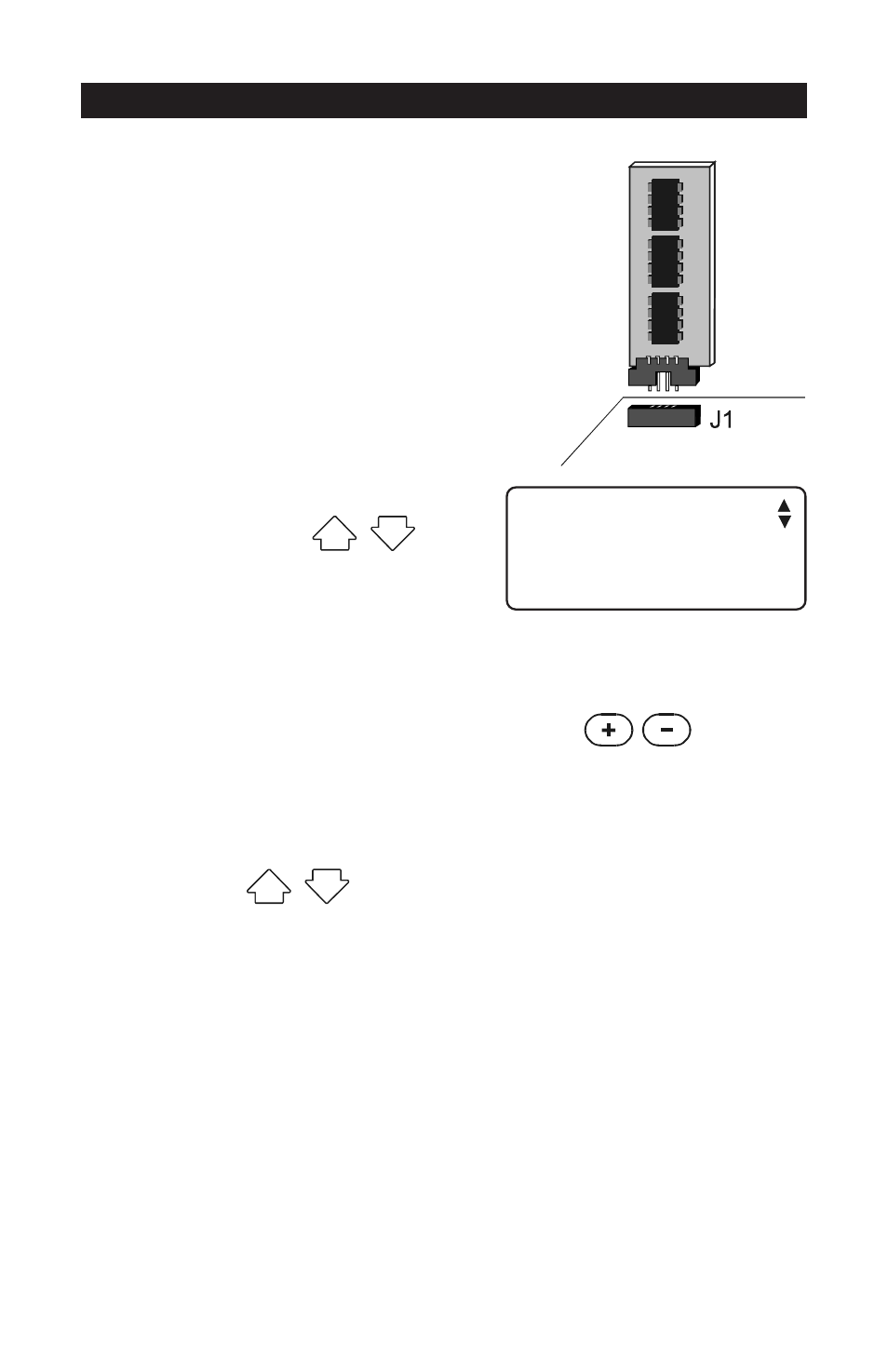

1- Position the configuration module on the J1
connector, at the top left corner of the
board, with the components facing DOWN.
2- Simultaneously press the up and
down-arrow keys
during a 5 second delay. The
following message is displayed : “
Load Configuration Press +/- to start”.
3- Simultaneously press the +and- push buttons . The
configuration starts to load. Wait until it is completely loaded.
4- Once the configuration has reached 100%, press the up and down-
arrow keys once again simultaneously to exit this
menu.
5- The new configuration is now loaded. Remove the configuration
module from the connector.
Load Configuration
Press +/- to start
