5.11 CLOCK OUTPUTS

The PP-32 has 4 clock outputs to control various devices, using the real-

time clock. Refer to the installation setup section to activate the clock

outputs (see sec. 5.14.3).

OPERATION OF CLOCK OUTPUTS 1 AND 2 :

The first 2 clock outputs can use up to 8 programs and each program

has up to 10 start and stop times. The user determines at what day each

program starts being used (this day is directly related to the animal age).

When a new program starts, the previous program is deactivated. Refer

to section 5.13.3 to enable the proper number of clock programs for

clock outputs 1 and 2.

An alarm is set off when a clock program that has not

been properly set is activated (this applies to clock

programs 2-8). This means that an alarm occurs when-

ever a clock program that has all the same start and stop

times (other than 12:00AM) is activated. In this case,

the previous clock program keeps on running

until the defective program is corrected.

OPERATION OF CLOCK OUTPUTS 3-4 :
Clock outputs 3-4 operate using 10 start and stop times.

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 1

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 2

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 3

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 4

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 5

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 6

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 7

ON / OFF 1

ON / OFF 2

ON / OFF 3

ON / OFF 4

ON / OFF 5

ON / OFF 6

ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

PROGRAM 8

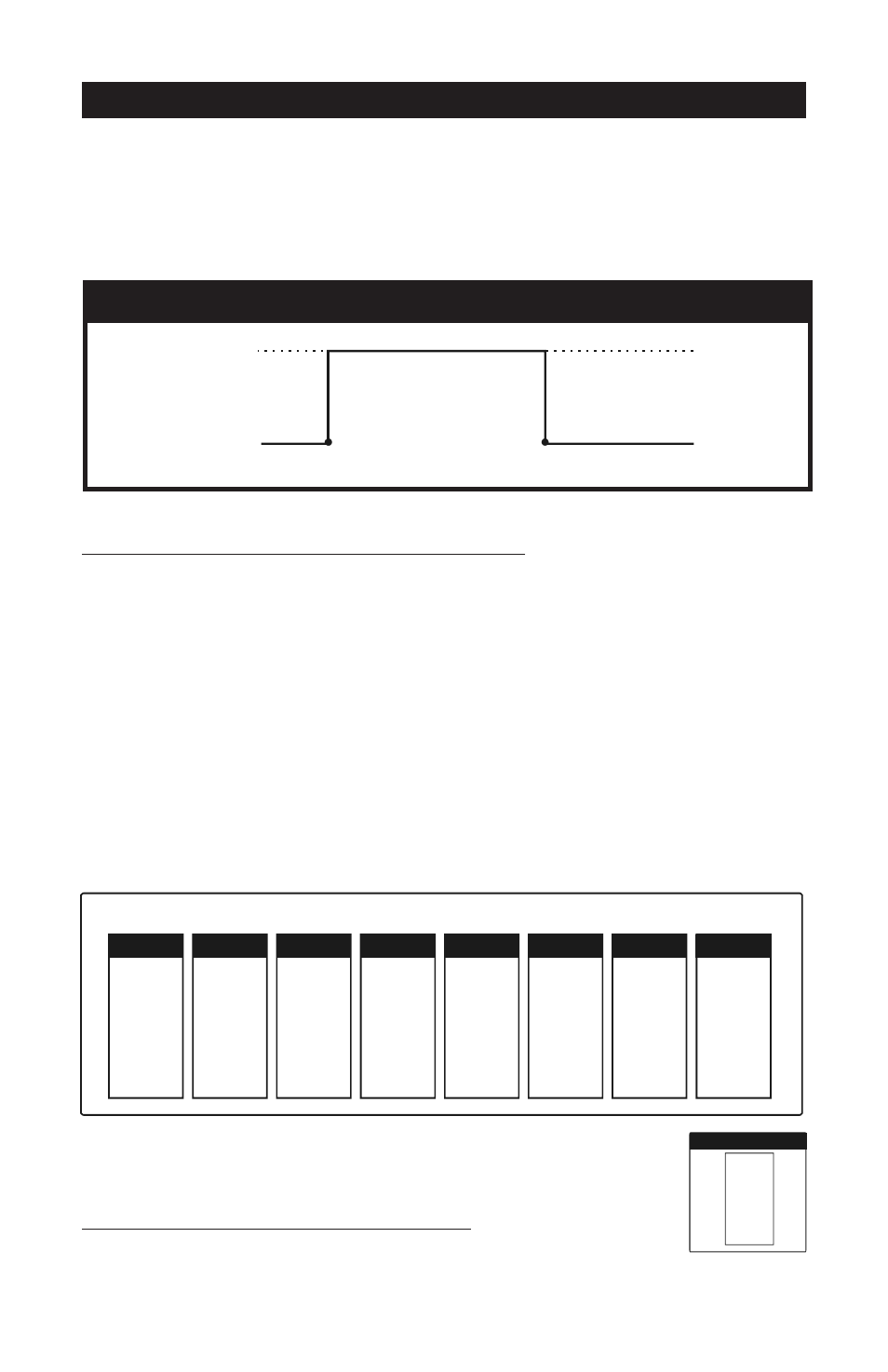

CLOCK OUTPUTS 1-2

CLOCK OUTPUTS 3-4

ON / OFF 1

ON / OFF 2

ON / OFF 3
ON / OFF 4

ON / OFF 5

ON / OFF 6
ON / OFF 7

ON / OFF 8
ON / OFF 9
ON / OFF 10

ON

START
TIME = 8:00

OFF

STOP
TIME = 9:30

START TIME / STOP TIME DEFINITION
