33 Chiller Technical Manual 7525355 V1.1.0_04_2013
Introduction
Chillers TurboChill™ Air Cooled and FreeCool

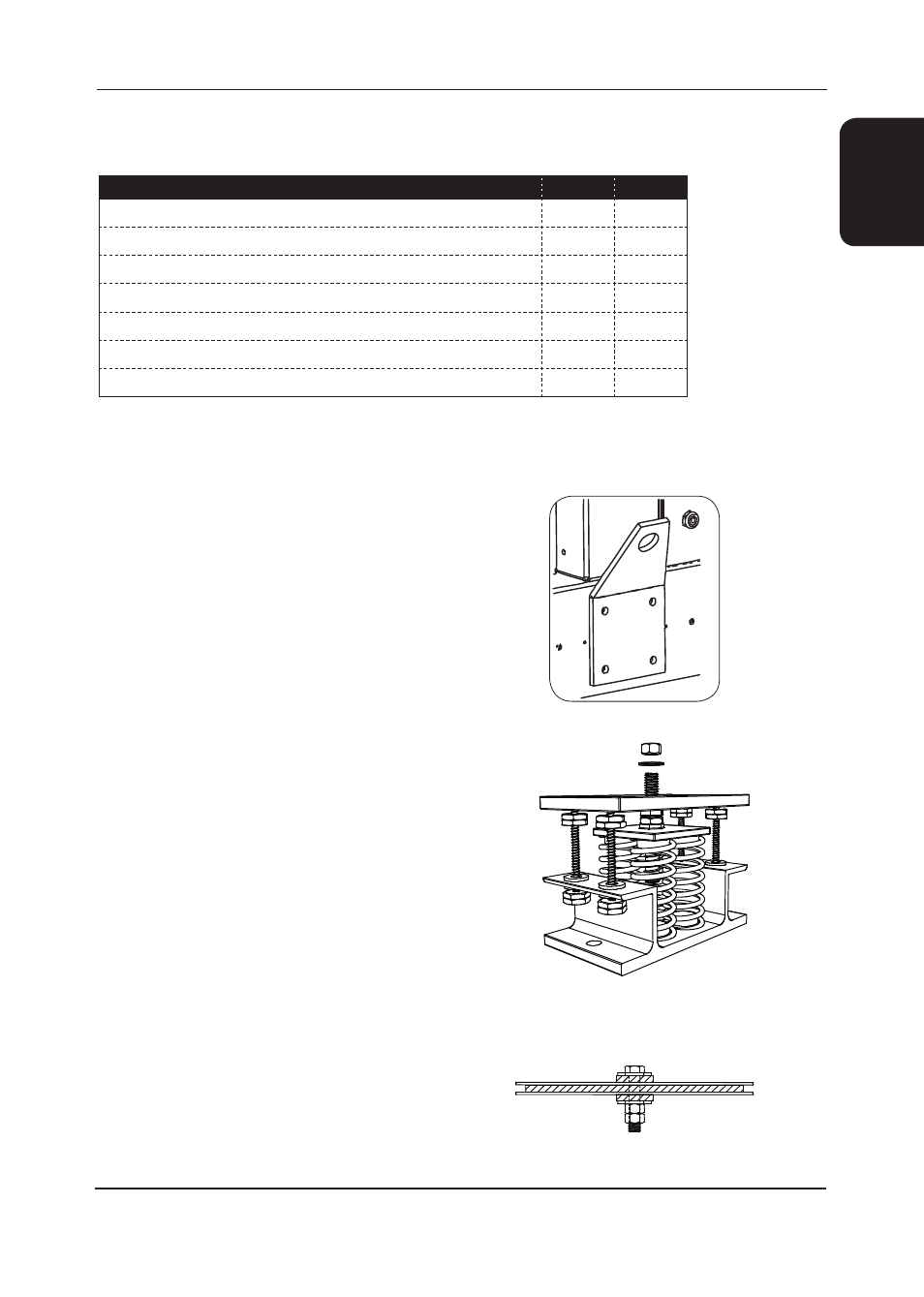

Anti Vibration Mounts (Spring Type)
Specially selected spring vibration isolators shall be
supplied loose for on site fitting to the base frame of
each unit.
The isolators shall be suitable for fitting to structural
steelwork providing the surface is level and of sufficient
strength where a high level of vibration elimination is
required.
Mechanical
Mechanical TCC TCF
Lifting lugs
● ●
Base - plain galvanised steel
● ●
Panels - galvanised sheet steel with epoxy powder paint
● ●
Standard height fan discharge plenum
● ●
Extended height fan discharge plenum
○ ○
Anti-vibration mounts (spring or pad type)
○ ○
Control panel rain hood
○ ○
Lifting Lugs
Lifting Lugs shall be fitted to the unit enabling full lifting requirements.
The lifting lug hole diameter is 40 mm.
●
Standard features
○
Optional features
–
Feature not available
Anti Vibration Mounts (Pad Type)
Pad vibration isolators can be supplied loose for on site
fitting to the base frame of each unit.
The isolators are suitable for fitting to structural steelwork
providing the surface is level and of sufficient strength
where a moderate degree of vibration elimination is
required.
