Chillers TurboChill™ Air Cooled and FreeCool
AV Mount Overhang
Support Steelwork

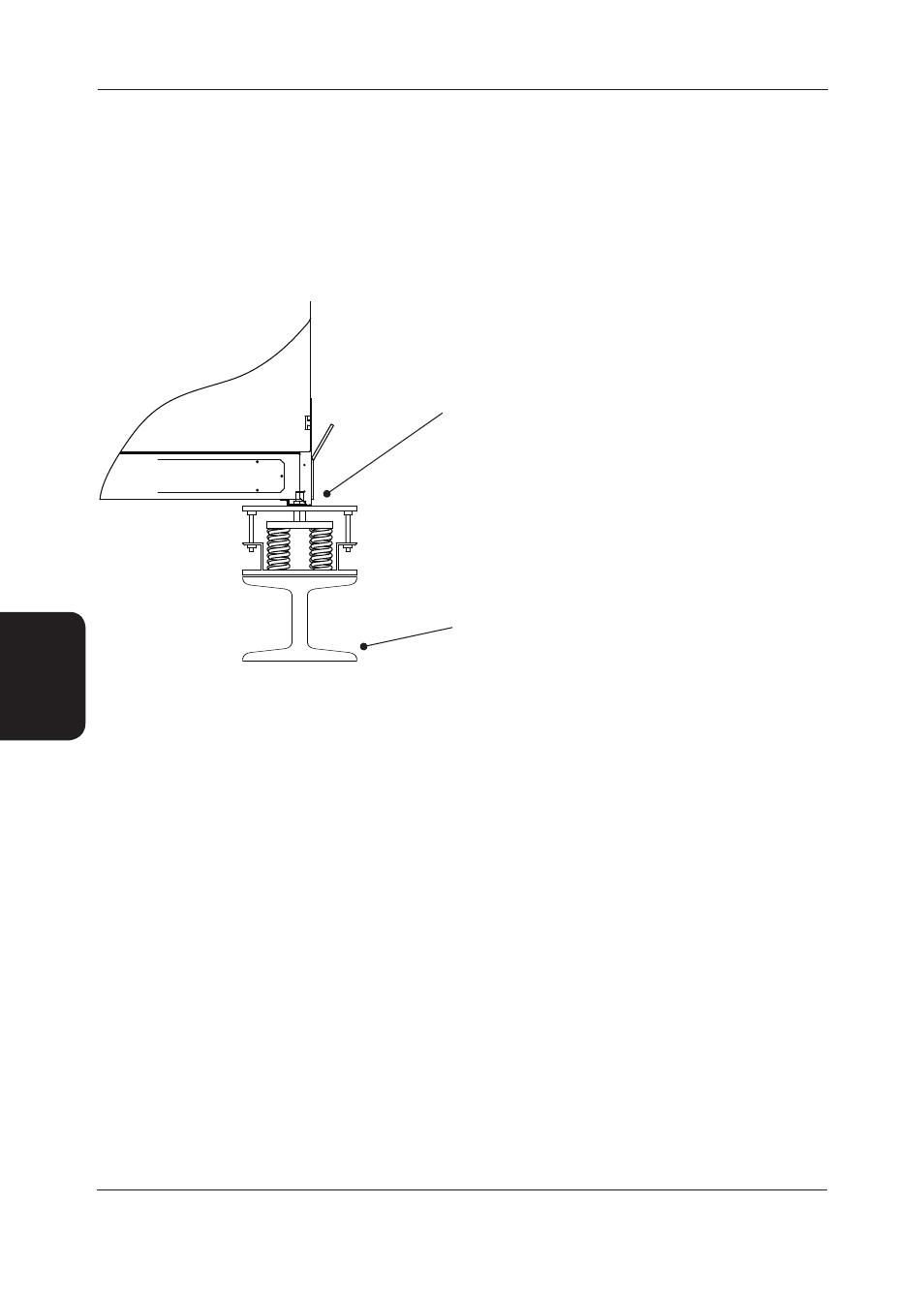

Anti Vibration Mount location to Unit and Plinth
The Anti Vibration mount is larger than the unit base. Consideration must be made with regard to steelwork / concrete
plinth sizes. Full information is available on the approved General Arrangement drawings.
The base of the unit is open. Considerations must be made for service and maintenance requirements if the unit is
installed on a gantry.
