Chillers
TurboChill™ Air Cooled and FreeCool
Installation Data

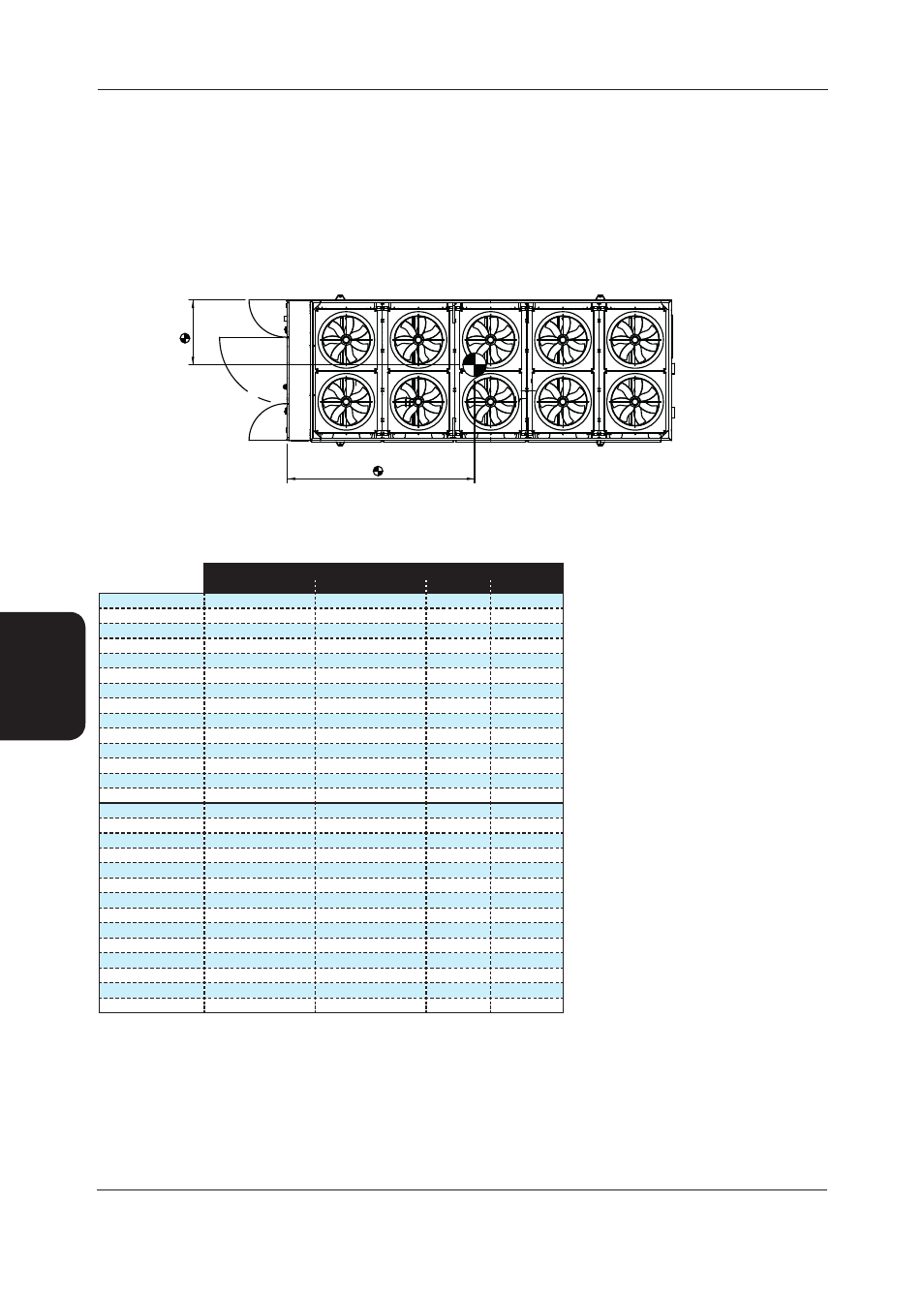

Freecool Masses & Centre of Gravity (C of G)
Standard Unit C of G’s
Machine (kg)
Operating (kg)
C of G 1
C of G 2
TCF11R06S-07
4075
4535
1170
1850
TCF11R08S-07
4885
5435
1110
2130
TCF11R06L-11
4505
5055
1090
1840
TCF11R08L-08
5130
5755
1090
2180
TCF11R10L-10
6190
6915
1090
2820
TCF12R08S-09
5510
5945
1130
2180
TCF12R10S-05
6585
7335
1120
2830
TCF12R12S-05
7465
8335
1120
3240
TCF12R14S-05
8325
9335
1110
3910
TCF12R12L-12
8215
9285
1120
3240
TCF12R14L-12
9075
10295
1100
3890
TCF12R16L-12
9960
11295
1100
4570
TCF12R18L-13
10745
12210
1090
5260
TCF12R20L-13
11630
13210
1090
5920
TCF11X06S-07
4075
4535
1170
1850
TCF11X08S-07
4885
5445
1110
2130
TCF11X06L-11
4505
5055
1090
1840
TCF11X08L-08
5130
5760
1090
2180
TCF11X10L-10
6190
6915
1090
2820
TCF12X08S-09
5510
5950
1130
2180
TCF12X10S-05
6585
7335
1120
2830
TCF12X12S-05
7465
8335
1120
3240
TCF12X14S-05
8325
9335
1110
3910
TCF12X12L-12
8215
9285
1120
3240
TCF12X14L-12
9075
10295
1100
3890
TCF12X16L-12
9960
11295
1100
4570
TCF12X18L-13
10745
12210
1090
5260
TCF12X20L-13
11630
13210
1090
5920
Centre of gravity is always measured
from the control panel end.
Above refers to standard configurations, contact Airedale for other options.
L1
L2
R1
R2
L3
R3
L4
R4
2
1
