Airedale TurboChill FreeCool 200kW - 1830kW - Manual (Page 108)

108 Chiller Technical Manual 7525355 V1.1.0_04_2013
In
st
alla
tio
n
Chillers TurboChill™ Air Cooled and FreeCool

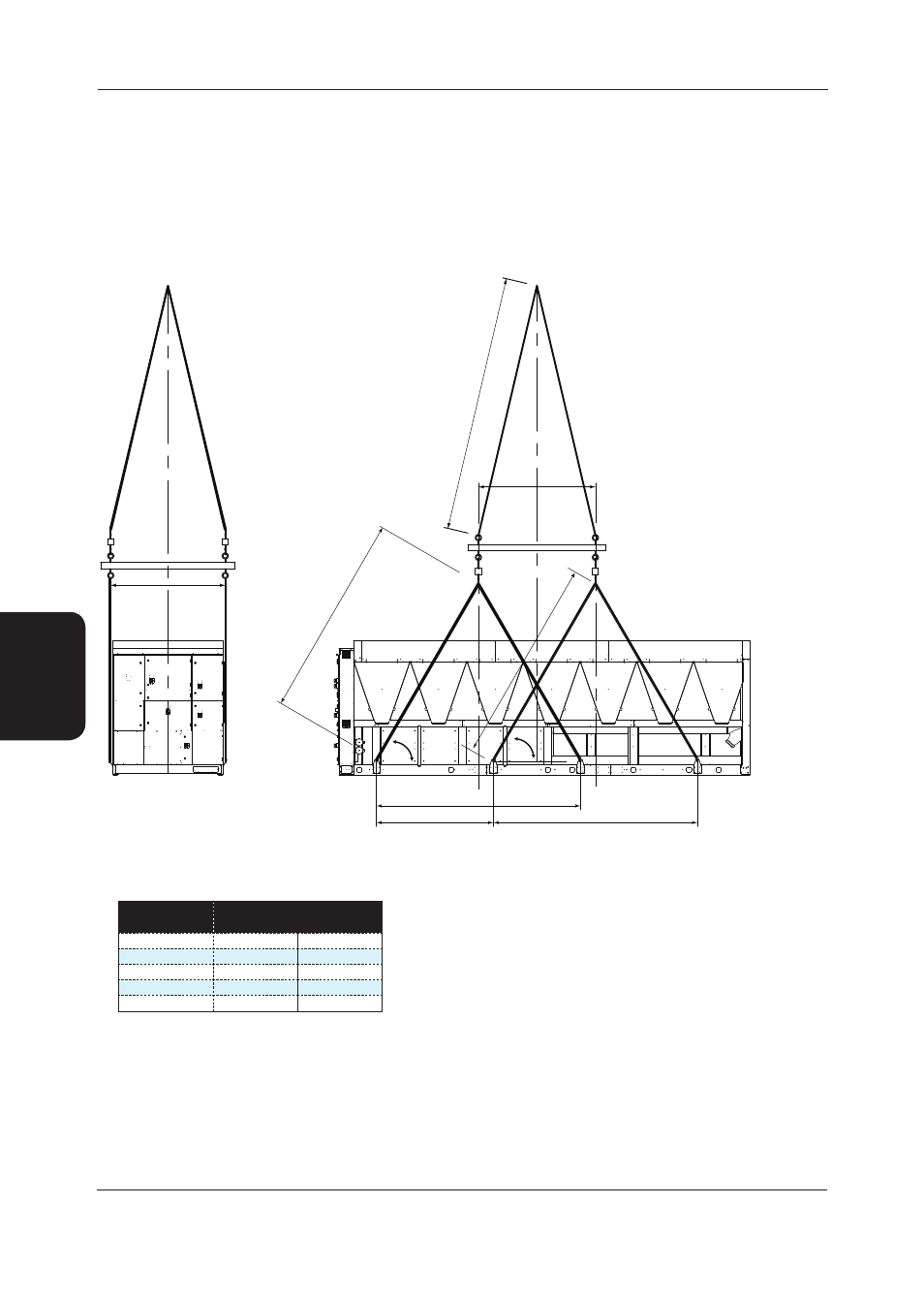

Lifting Dimensions
Installation Data
B
≥
5000 mm
≥
A
≥60°
>
A
≥60°
A
B A
2300
8 Point
Number
of Fans
A (mm) B (mm)
12 3600 1536
14 4500 1536
16 4300 3100
18 5500 2800
20 6500 3164
