Introduction
Chiller Technical Manual 7525355 V1.1.0_04_2013
Chillers TurboChill™ Air Cooled and FreeCool
Water Connections
Water inlet and outlet connections shall be of a grooved and clamped type construction.
Optional flanged connections shall be available on request, please consult Airedale.
Water connection to evaporator only (air cooled only)
Water inlet and outlet connections shall terminate directly on the evaporator.
Extended Water Connections (air cooled only)
Extended water connections shall be available on all air cooled units,it allows the water connections to terminate at the end of
the unit.
Water Filter
A 1/16” mesh water filter can be supplied fitted to protect the evaporator from clogging by sediment. On certain models the filter
is fitted externally.
Bypass Options
No bypass
Comprises
•
Shut off valves
• Filter
Flushing bypass kit (standard)
Comprises:
•
Shut off valves
• Filter
• Bypass leg with shut off valve
Flushing bypass kit (regulating)
Comprises:
•
Shut off valves
• Filter
• Bypass leg with Double
regulating valve
Pump Configurations
Single pump + filter + bypass (flushing)
Comprises:
•
Single pump with vibration isolation
• Shut off valves
• Filter
• Bypass leg
Single pump + filter + bypass (regulating)
Comprises:
•
Single pump with vibration isolation
• Shut off valves
• Filter
• Double regulating valves

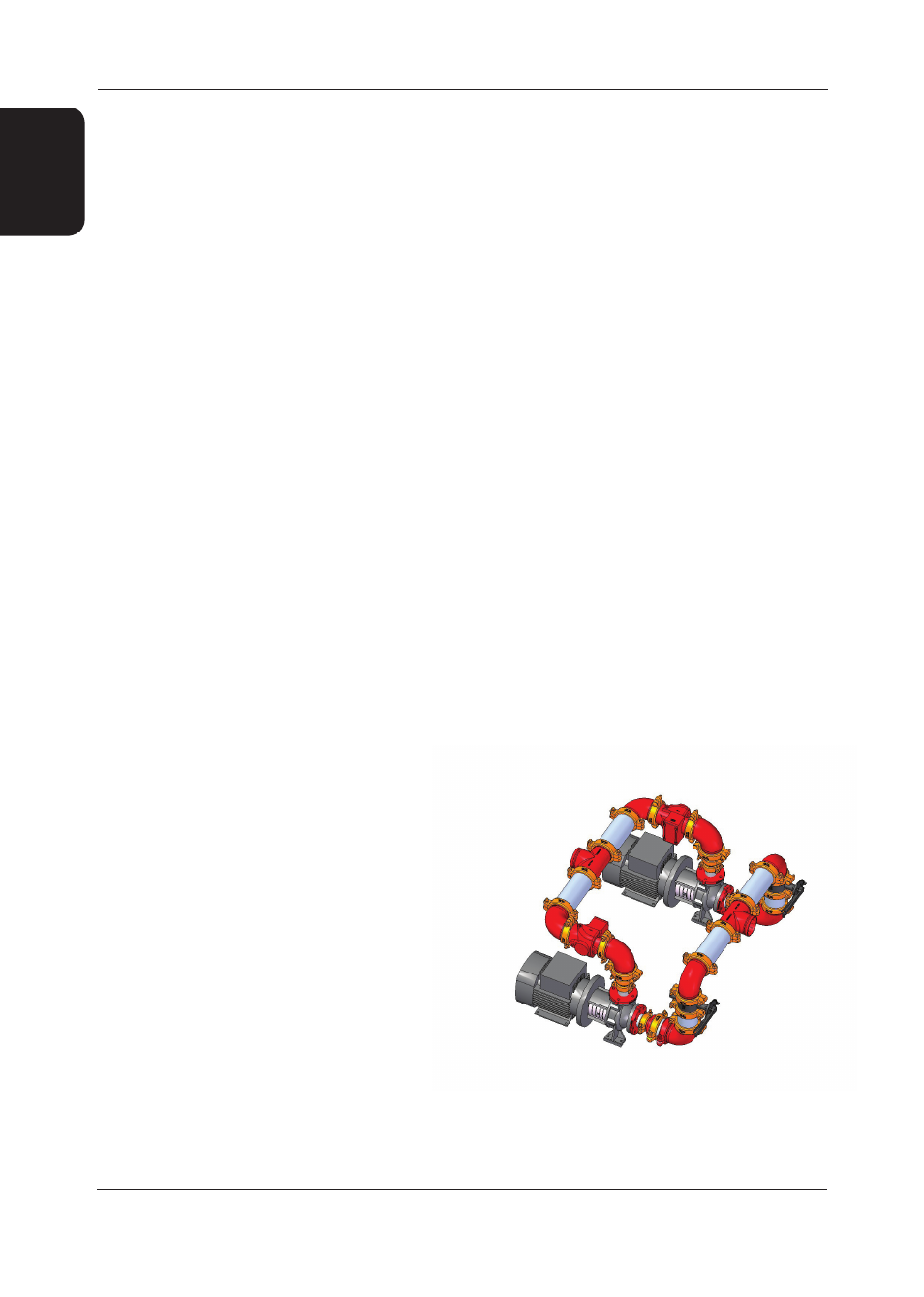

Run & standby pumps + filter + bypass (flushing)
Comprises:
•
Run and standby pumps with vibration isolation
• Shut off valves
• Filter
• Non return valves
Run & standby pumps + filter + bypass (regulating)
Comprises:
•
Run and standby pumps with vibration isolation
• Shut off valves
• Filter
• Double regulating valve
• Non return valve
