6.4
* For further details about Screen 1-A,
refer to “6-2 Switching the display
screen” in this manual.

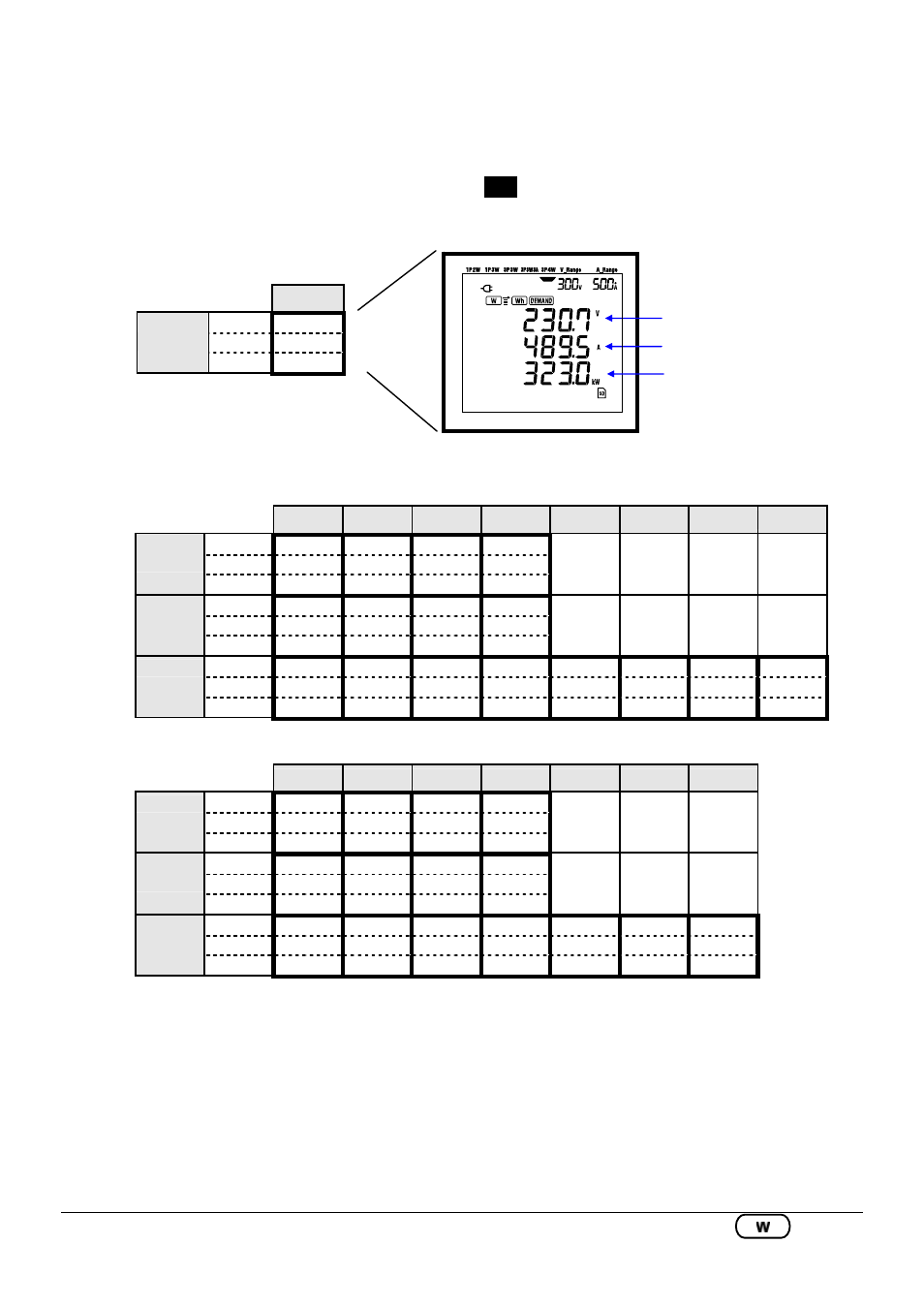

6.1 Wiring Configuration display screen
The start-up screens (or the screen after system reset) corresponding to each wiring configuration
are listed below.
When turning the Function switch from “OFF” to
W range, the following measurement screen
appears.
Screen 1-A (*)
Screen A
Upper V
Middle A Screen 1
Lower P
● Three-phase 4-wire “3P4W” (16 screens)
Screen A Screen B Screen C Screen D Screen E Screen F Screen G Screen H
Upper V V1 V2 V3
Middle A A1 A2 A3 Screen 1
Lower P P1 P2 P3
－ － － －
Upper P P1 P2 P3
Middle
S S1 S2 S3 Screen 2
Lower PF PF1 PF2 PF3
－ － － －
Upper V1 A1 P1 PF1 S1 Q1 f VL12
Middle V2 A2 P2 PF2 S2 Q2 In VL23 Screen 3
Lower V3 A3 P3 PF3 S3 Q3 － VL31
● Three-phase 3-wire (3 clamp sensor) “3P3W3A” (15 screens)
Screen A Screen B Screen C Screen D Screen E Screen F Screen G
Upper
V V1 V2 V3
Middle A A1 A2 A3 Screen 1
Lower P P1 P2 P3
－ － －
Upper P P1 P2 P3
Middle S S1 S2 S3 Screen 2
Lower
PF PF1 PF2 PF3
－ － －
Upper V1 A1 P1 PF1 S1 Q1 f
Middle
V2 A2 P2 PF2 S2 Q2 － Screen 3
Lower V3 A3 P3 PF3 S3 Q3 －
Upper : V
Middle : A
Lower : P
e.g. Three-phase 4-wire
(Screen 1-A)
