4.1
KEW6305
4. Setting
4.1 List of setting items
This section deals with settings for measurement and data saving.

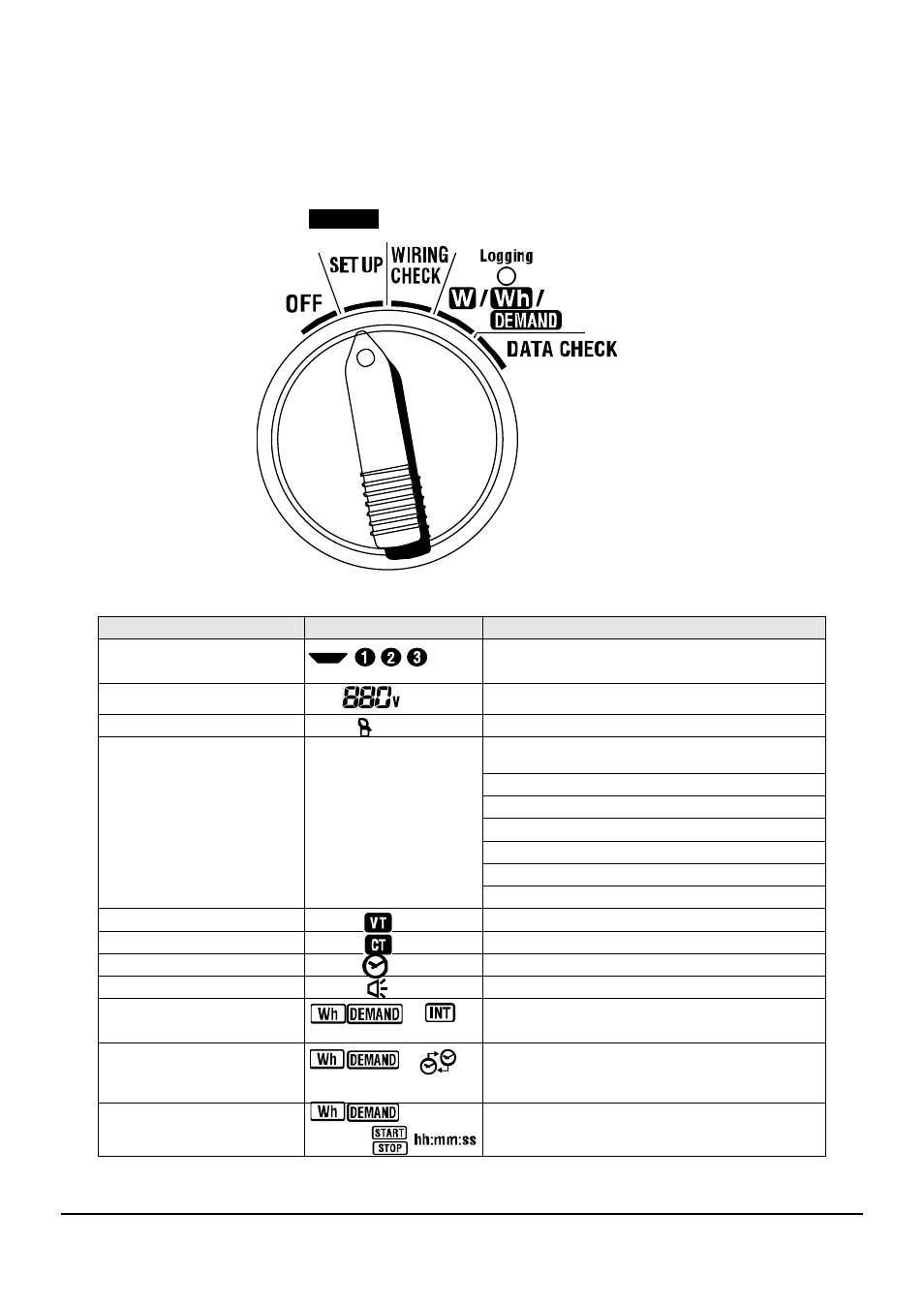

Set the Function switch to
SET UP range as follows.
Setting no./ item Symbol Details
01 Wiring system
1P2W(1ch)/ 1P2W(2ch)/ 1P2W(3ch)
/ 1P3W/ 3P3W/ 3P3W3A/ 3P4W
02 Voltage range 150/ 300/ 600V
03 Clamp sensor 50/ 100/ 200/ 500/ 1000/ 3000A type
03
Sensor
Range
50A 1/5/10/25/50A/AUTO
100A 2/10/20/50/100A/AUTO
200A 4/20/40/100/200A/AUTO
500A 10/50/100/250/500A/AUTO
1000A 20/100/200/500/1000A/AUTO
04 Current range -
3000A 300/1000/3000A
05 VT ratio 0.01 - 9999.99 (can be set by 0.01)
06 CT ratio 0.01 - 9999.99 (can be set by 0.01)
07 Date and time Year:Month:Day:Hour:Minute:Second
08 Buzzer ON / OFF
09
Recording
interval 1/ 2/ 5/ 10/ 15/ 20/ 30 sec./
1/ 2/ 5/ 10/ 15/ 20/ 30 min./ 1 hour
10
Specific time period
rec. or endless rec.
ON: Specifying start/ stop time
(repeatedly recorded)
OFF : Record the data continuously
11
*1
Time period setting
Time setting
Start and stop time
(Year:Month:Day:Hour:Minute:Second)
+
+
+
