2.5
KEW6305

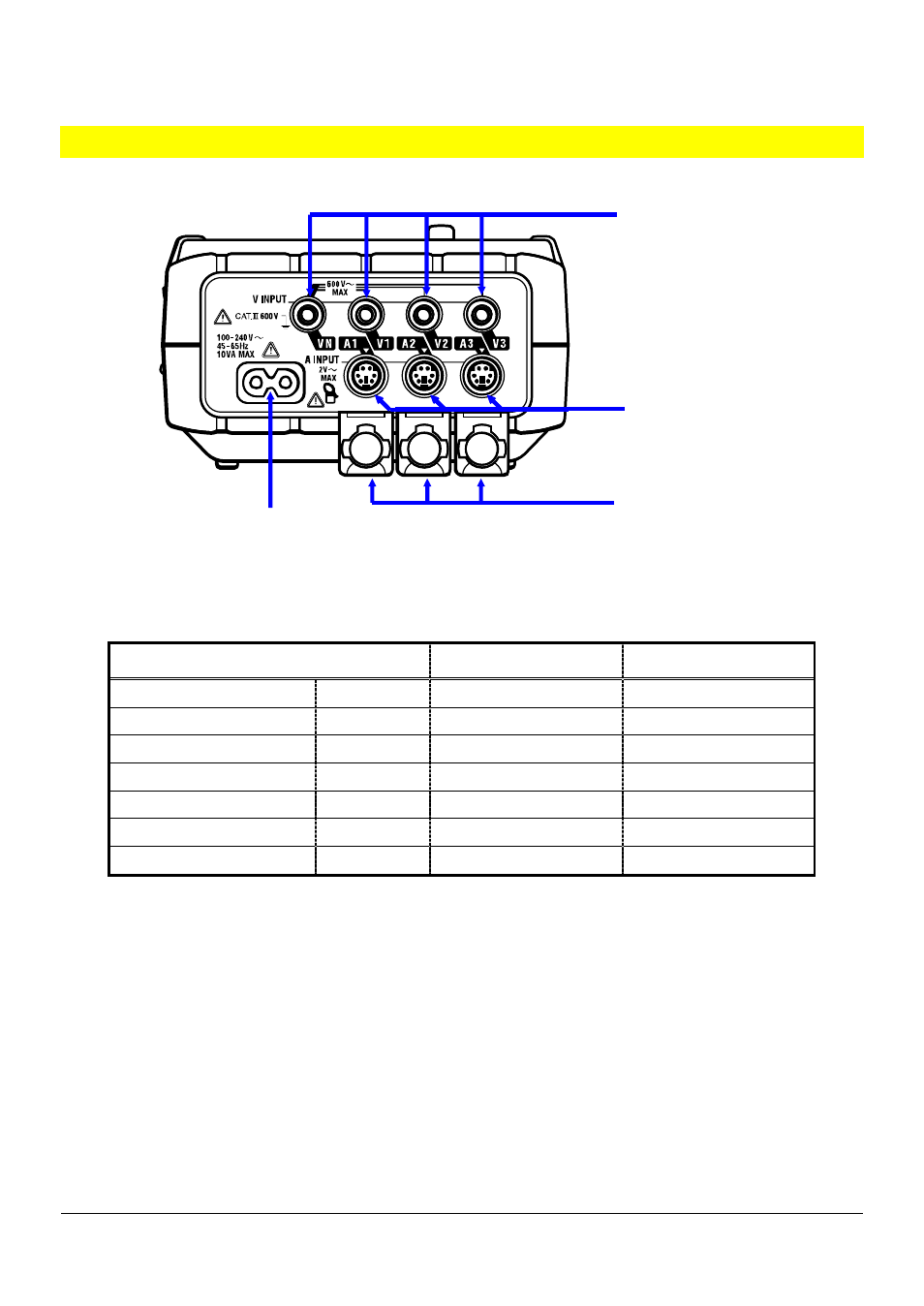

2.3 Connector
Descriptions
Wiring configuration Voltage Input Terminal Current Input Terminal
Single-phase 2-wire 1P2W(1ch) VN, 1 A1
Single-phase 2-wire (2ch) 1P2W(2ch) VN, 1 A1, 2
Single-phase 2-wire (3ch) 1P2W(3ch) VN, 1 A1, 2, 3
Single-phase 3-wire 1P3W VN, 1, 2 A1, 2
Three-phase 3-wire 3P3W VN, 1, 2 A1, 2
Three-phase 3-wire 3A 3P3W3A V1, 2, 3 A1, 2, 3
Three-phase 4-wire 3P4W VN, 1, 2, 3 A1, 2, 3
Voltage Input Terminal
(VN, V1, V2, V3)
Power Connector
Current Input Terminal
(A1, A2, A3,)
Terminal Cover
