4.7

KEW6305

1 5 0 V 3 0 0 V 6 0 0 V

1 P2 W 1 P3 W 3 P3 W 3 P4 W

5 A

1 0 A

2 0 A

5 0 A

1 0 0 A

2 0 0 A 5 0 0 A 1 0 0 0 A

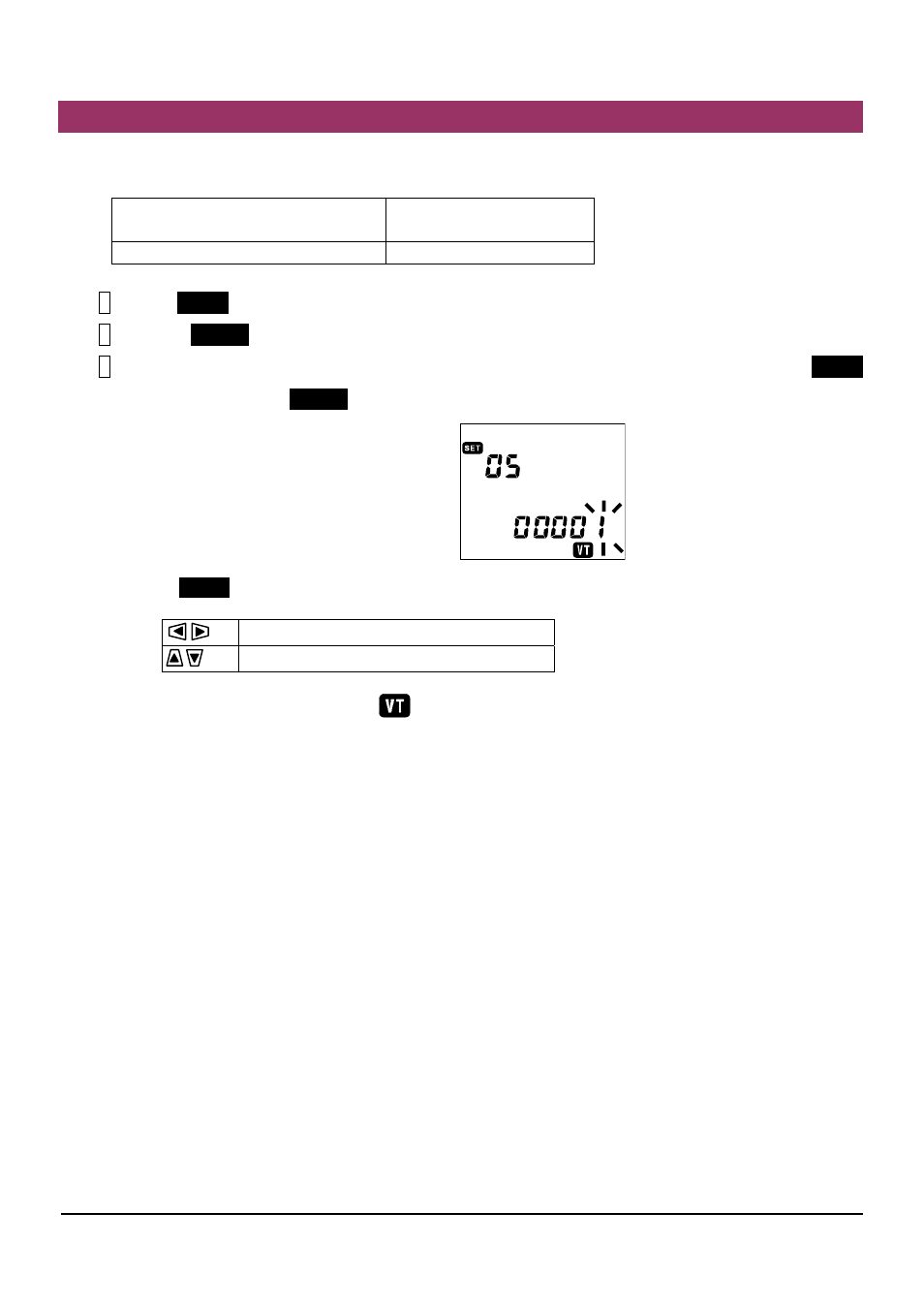

“Setting 05” VT ratio

For the detailed information about VT ratio, please refer to “5-3 VT/CT ratio” in this manual.

Setting range

0.01 - 9999.99

(can be set by 0.01)

Default value (or after system reset)

1.00

1 Use the

Cursor

key on the selection screen, and select “Setting 05”.

2 Press the

ENTER

key to get the instrument into setting change mode.

3 The rightmost digit of previous setting (or default value: 1.00) blinks. Change number with the

Cursor

key, and then press the

ENTER

key after making necessary change.

Function of

Cursor

keys:

To select the digit subject to change.

To change the value of selected digit.

When VT ratio is set to other than 1, “

“ mark appears on the LCD.

NOTE

* When 0 is set as a VT ratio, it is forcefully changed to 1.
