KYORITSU 6305 Instruction Manual User Manual
Page 60
5.3
KEW6305

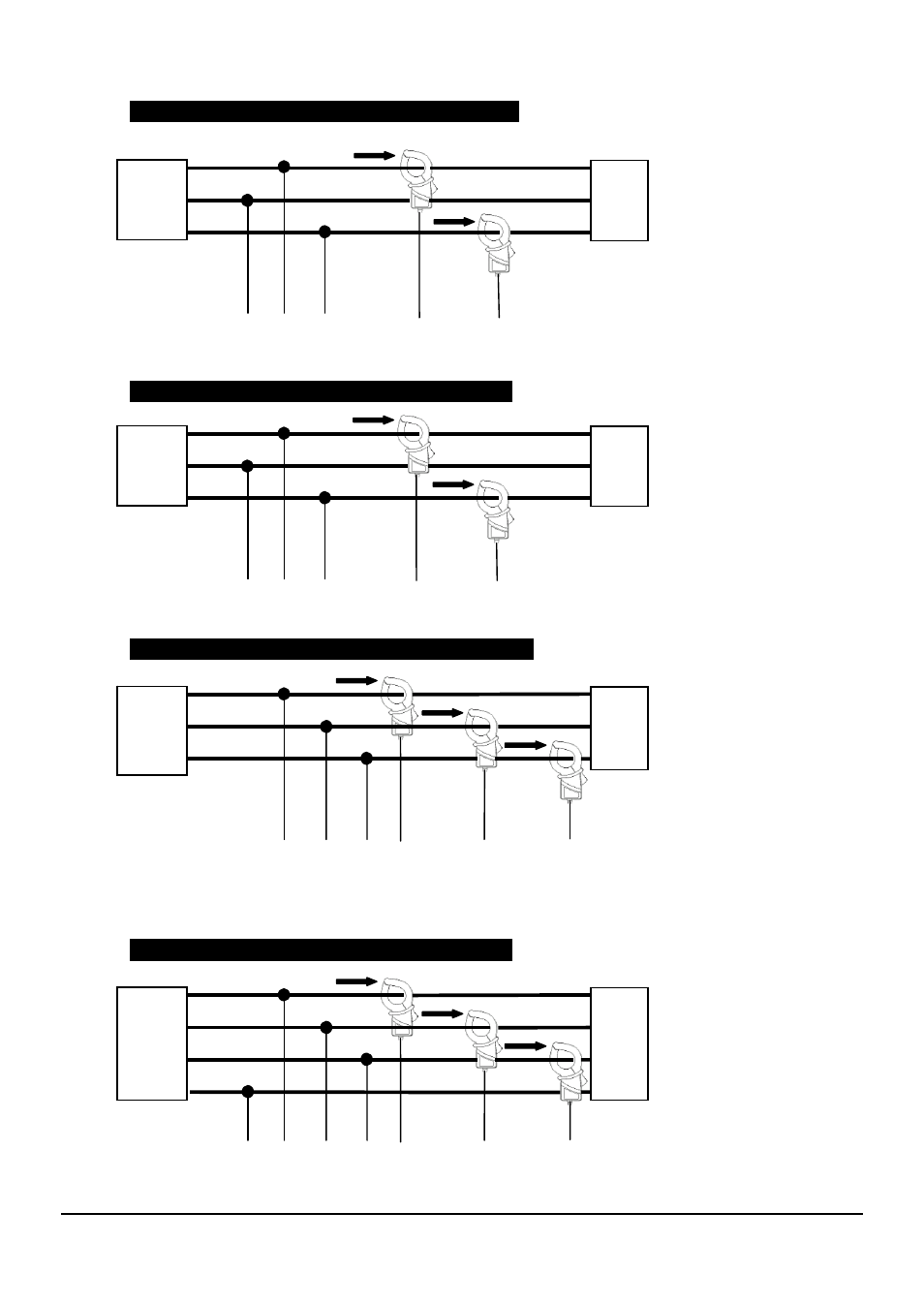

● Wiring method for single-phase 3-wire “1P3W”
● Wiring method for three-phase 3-wire “3P3W”
● Wiring method for three-phase 3-wire “3P3W3A”
● Wiring method for three-phase 4-wire “3P4W”
VN V1
A2
A1
N
L2
Load
Source
V2
L1
VN
V1
A2
A1
L2
L3
Load
Source
V2
L1
VN
V1
A3
A2
L2
L3
V2
L1
Source
N
V3 A1
Load
VN
V1
A3
A2
L2
L3
V2
L1
Source
V3 A1
Load
