SECTION 5 - MANAGEMENT FUNCTIONS

OPERATION MANUAL - MODEL 9610

5-16

UNCTION

: DIAGNOSTICS

ACTORY

EFAULT

: N/A

CCESS

NSTRUCTIONS

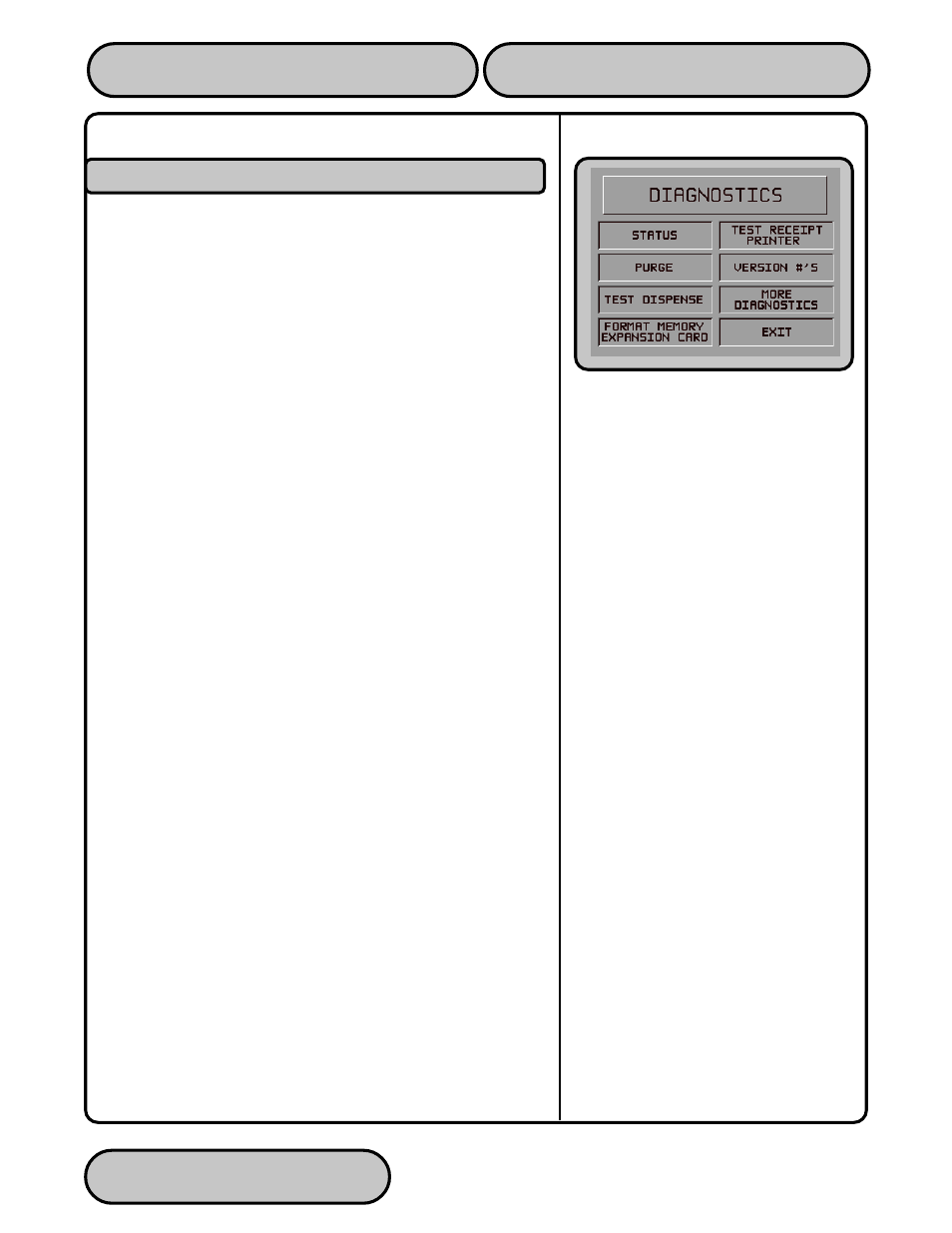

Select DIAGNOSTICS from the MANAGEMENT FUNCTIONS
screen.

ESCRIPTION

Select one of the following to perform the appropriate DIAGNOS-
TICS test:

1.) Select STATUS to determine the operational status of the Cash

Dispenser.

2.) Select PURGE to complete a PURGE cycle on the dispensing

mechanism.

3.) Select TEST DISPENSE to perform a combined dispense and

reject operation on the dispensing mechanism.

4.) Select FORMAT MEMORY EXPANSION CARD to erase the

contents of a memory Expansion Card and to prepare the card
to receive new data.

5.) Select the TEST RECEIPT PRINTER option to test the

operation of the Receipt Printer.

6.) Select the VERSION #’S option to display a screen that

provides version numbers for

the

v a r i o u s

components of the terminal operating software.

7.) Select the MORE DIAGNOSTICS option to access the following

diagnostic functions:

RESET/TEST MODEM. Select this option to verify that a
modem is installed and that it is capable of being configured.

SCAN CARD. Select this option to to verify that a customer’s
ATM or credit card can be read by the terminal card reader.

NOTE: The diagnostics options do not have a time-out associated
with them. You must manually exit the diagnostics mode when
you are finished.

RROR

ONDITIONS

There are no error conditions directly associated with this function.
