Removing the Note Tray
1. Ensure the terminal is not in use before removing the note
tray! Removing the note tray while the machine is in operation
(processing customer transactions, performing close
operations, etc.) can cause the terminal to enter an “Out of
Service” condition!
2. Open the outer fascia panel to gain access to the security
container door, using the key lock on the front of the panel.
Open the combination lock on the security container door and
open the door to gain access to the dispensing mechanism.
3. To remove the note tray, grasp the tray handle and slide the
tray out of the mechanism (See Figure 4-2).
Removing Rejected Notes
The reject compartment is located nearest the handle side of the
note tray. Check the compartment for rejected notes. Remove any
notes present.
You may wish to record the denomination and number of notes for
use when balancing the note tray against the tray/day close records.
Loading the Note Tray
1. Move the pusher plate to the rear of the tray (toward the handle).
Ensure the pusher plate is fully back. Maintain pressure on the
pusher plate as needed while loading notes.
2. IMPORTANT: The shape of some notes may be affected by
conditions of storage or bundling, preventing them from forming
neat, even piles. If not corrected, such conditions may cause
notes to be rejected by the dispensing mechanism.
To compensate for the most common conditions of slanting or
cupped note piles, follow the directions given next.
Notes with no apparent shape problems are referred to as
“common” notes.

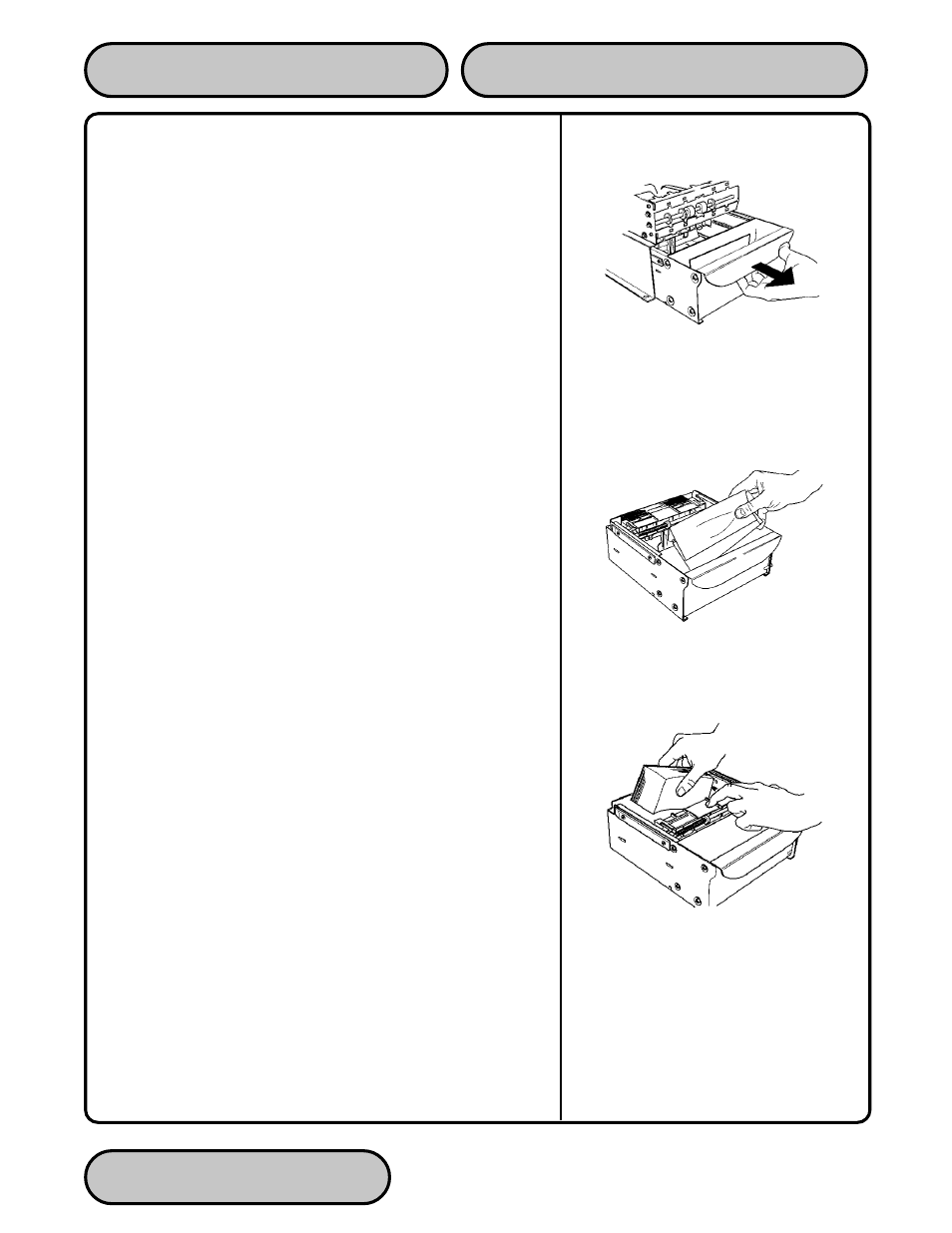

Figure 4-2. Removing a note tray
from the dispensing mechanism.
Figure 4-3. Removing rejected notes.
Figure 4-4. Loading note tray with
currency.
