8" Pipe Support Brackets
1. Install the 8" pipe support brackets so the system will have 1" of drop toward the In-Line Pump for proper water
supply. Determine the height at which the bottom of the MegaCool system should be mounted above the ground.
Make a mark on each end post to represent the height.
NOTE: If a Center-Mount In-Line Pump System is being installed, the support brackets should be MOUNTED LEVEL
WITHOUT THE 1" DROP
IMPORTANT: The height of the bottom of the System should be a minimum of 9 ½” inches above the ground in order to
elevate the pump above ground. Failure to do so may void the motor warranty.
2. Stretch chalk line between marks of end posts and mark all posts of system.
3. For each post of system, align bottom edge of metal support bracket with mark on post. Securely mount metal
support brackets on centers of 4x4" posts, not more than 5 ft. (1.52 m) O. C. (on center).
4. Secure metal support brackets to wooden posts with ¼ x 2" Lag screws, or secure metal support brackets to steel
posts with #14 x 1" Hex Head TEK screws.

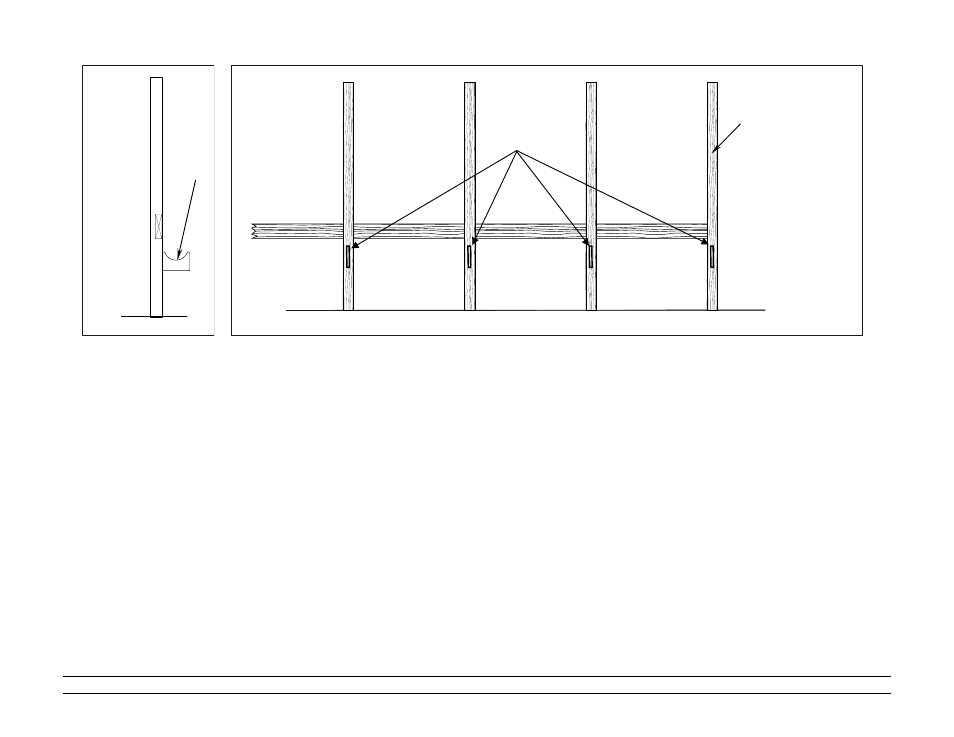

Front View
Support
Brackets
Side View
End post at
float side of
system.
Support
Bracket
