Part No. 4801-5120 Rev. 6-09 Mega-Cool System Page 35
5
Mega-Cool 10'-80' Straight, Center-
Mount Sump Pump

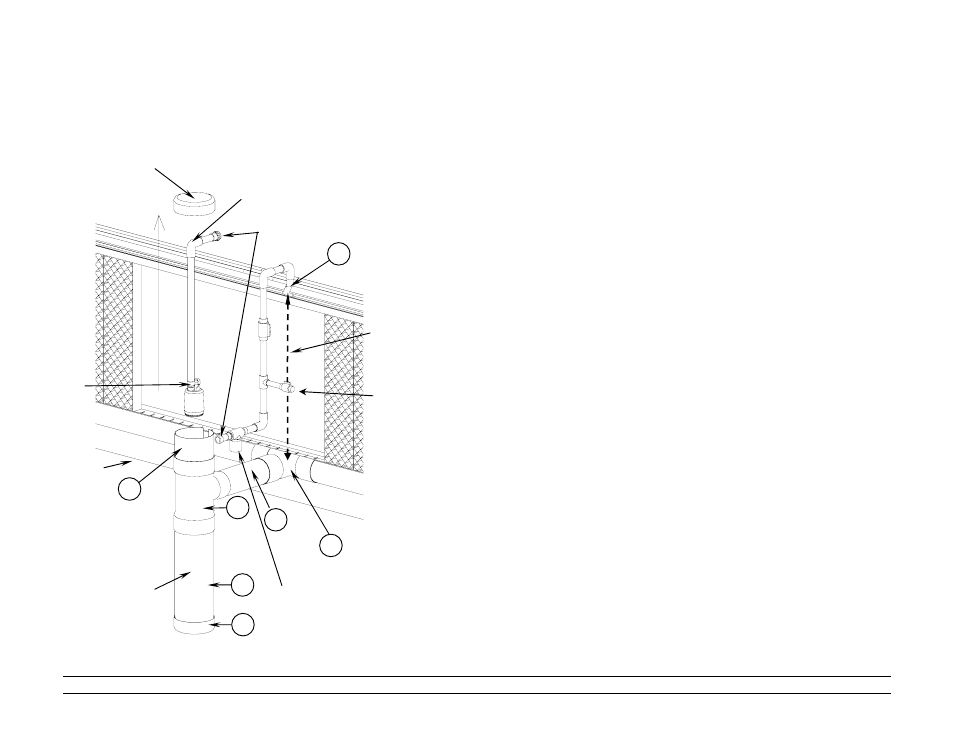

INSTRUCTIONS – Sump Pump Tee-Tank Assembly
1. The PVC for the Tee-Tank Assembly is precut to length. Assemble the Tee-
Tank in the order shown at the left .
2.
Locate the center of the system and install the 8” Tee (Item #6) into the 8”
reservoir pipe.
3. Also at the center of the system, install the 1 ¼”x1 ¼”x 1 ½” PVC Tee Reducer
(Item #7) into the spray line. The Tee reducer must be pointed vertically as
shown. NOTE: Ensure that the two Tees (Items #6 & #7) are in vertical
alignment.
4. Glue Bottom Cap (Item #1) to 12"x3' Reservoir Pipe (Item #2) as shown at the
left.
5. Glue Reservoir Pipe (Item #2) into the bottom of Tee (Item #3). Then glue the
Slotted Pipe (Item # 4) into the top of the Tee (Item #3). Make sure to align
the slot in Item #4 with the extended center of Tee (Item #3) as shown at the
left.
6. Glue the 8"x2’ pipe (Item #5) onto the 8" tee (Item #6) in the Mega-Cool. Make
sure the 8"x2' Pipe (Item #5) is level during assembly.
7. Glue Tee-Tank assembly (Items # 1, 2, 3 & 4) onto 8”x2’ pipe (Item #5) as
shown in Figure 1. Bottom part of Tee-Tank assembly must be installed
below ground level as shown on page 35.
Drain Valve
Submersible Pump
Ground Level
IMPORTANT!
Install Filter with arrow
pointing in direction of
water flow!
DO NOT GLUE, Top
must be removed to
service pump as
shown.
Threaded
Union
1
2
3
4
6
NOTE: Refer to Page 35 for
pump assembly and spray
line connections.
NOTE: The Pump housing is designed to be installed below ground level.
Align Tees
vertically
1 ½"Male
Threaded
Union
1 ½" 90º
Elbow
7
