Part No. 4801-5120 Rev. 6-09 Mega-Cool System Page 8
NOTES:
• In-Line Pump location will vary depending on setup option.
• Pads come in 4 ft, 5 ft, or 6 ft Heights; Pads come in 4 inch or 6 inch
thickness.
Framing
1. Refer to Page 3 and 4 Installation Cross-Section for the framing dimensions of the pads you
are installing.
2. Make opening in wall equal to the length of pad and the height of pad.
3. Frame the opening with treated lumber as shown above. Make sure boards are level.
NOTE: Use steel equivalent to frame opening if installing Mega-Cool system
to steel building.

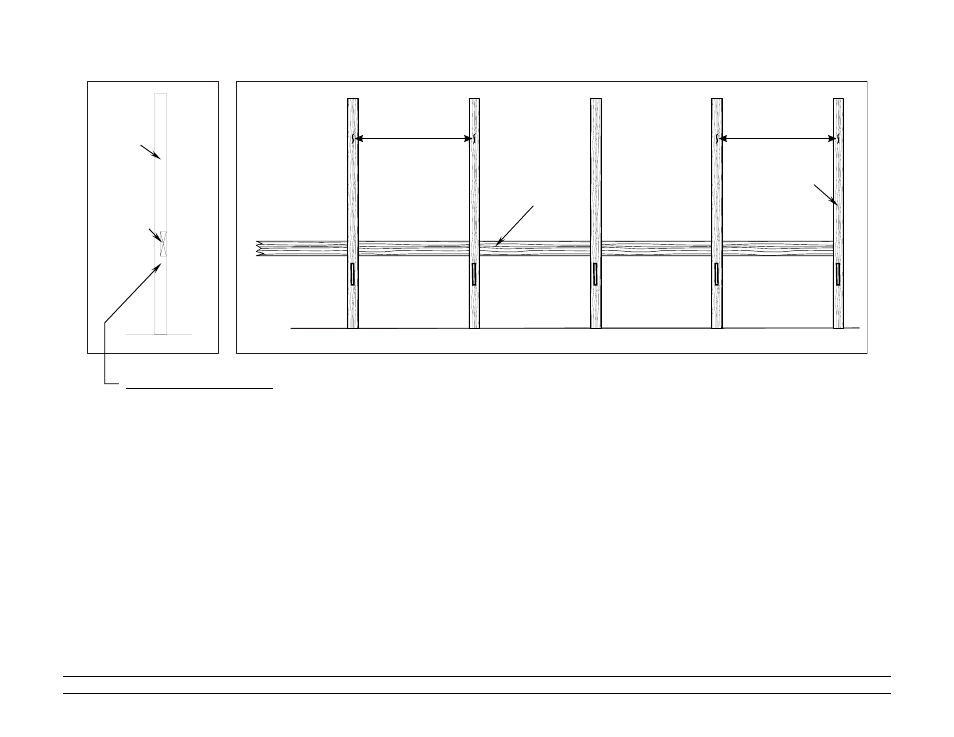

Front View
2 x 6 ″
board
(or steel
Equiv.)
4 x 4 ″
post
(or steel
Equiv.)
End post of
system
Set posts on
5ft (1.5 m)centers
5 ft. (1.5 m)
center-to-center
2x6" FILLER BOARDS
2x6" filler boards are
necessary to secure the
bottom flashing to the
wall.
The bottom flashing
serves as a splash-guard
and fills the gap for
improved air flow.
Fit 2x6" filler boards in
between posts and flush
with front of posts.
Attach
Bottom
Flashing. *
