Page 17
Part No. 4801-5120 Rev. 6-09
Mega-Cool System
Page 17
Install Spray Line
1. Glue spray line sections together. Important! Glue joints with
spray line holes pointed in the same direction. Allow glue to
dry.
NOTE: If a Center-Mount In-Line Pump System is being
installed, the spray line must have a tee joint in the
middle. Refer to the Center-Mount System Diagram on
Page 25. Spray line tee installation will be simplified if
the spray line is cut after the In-Line Pump & supply
line is plumbed and the correct tee placement verified.

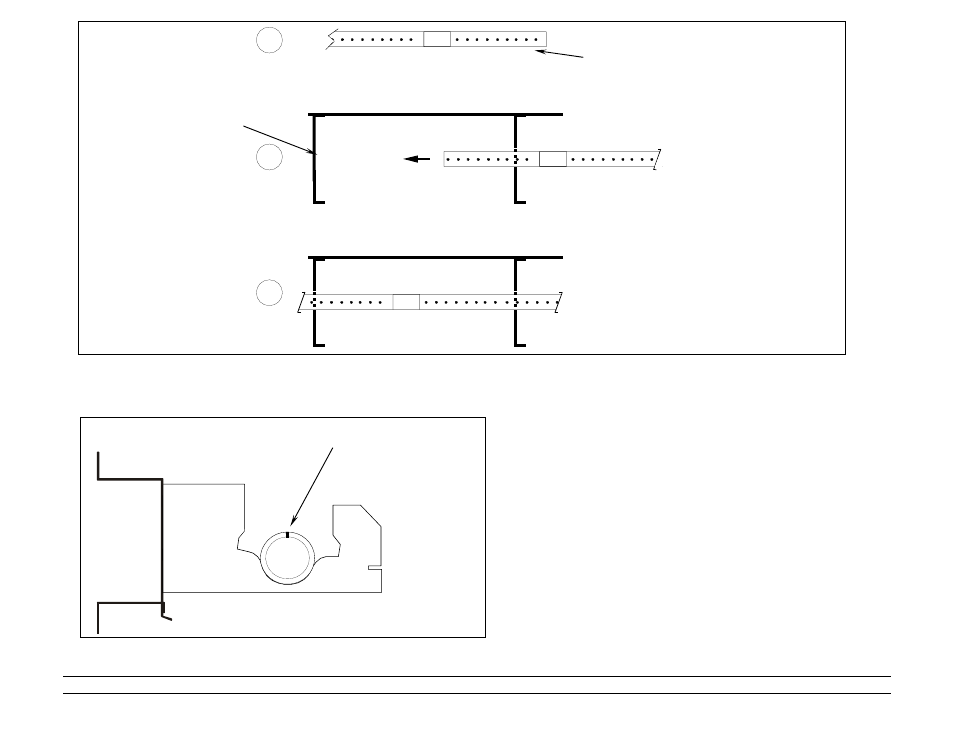

2. Insert spray line assembly into one end of top bracket. Slide
assembly until spray line spans entire length of top bracket.
3. Rotate spray line to place holes facing upward. (NOTE: Side
View shown at left).
Rotate spray line
To point holes
1
2
3
Assemble Spray Line
Lay Spray Line into Top Support Brackets
Spray Line Installed With Holes Upward
Top Support
Bracket
TOP VIEW
TOP VIEW
Be sure to point holes in the same
direction when gluing Spray line.
