Install removable end cap – Hired-Hand Mega-Cool rev 6-09 User Manual
Page 14
Part No. 4801-5120 Rev. 6-09
Mega-Cool System
Page 14

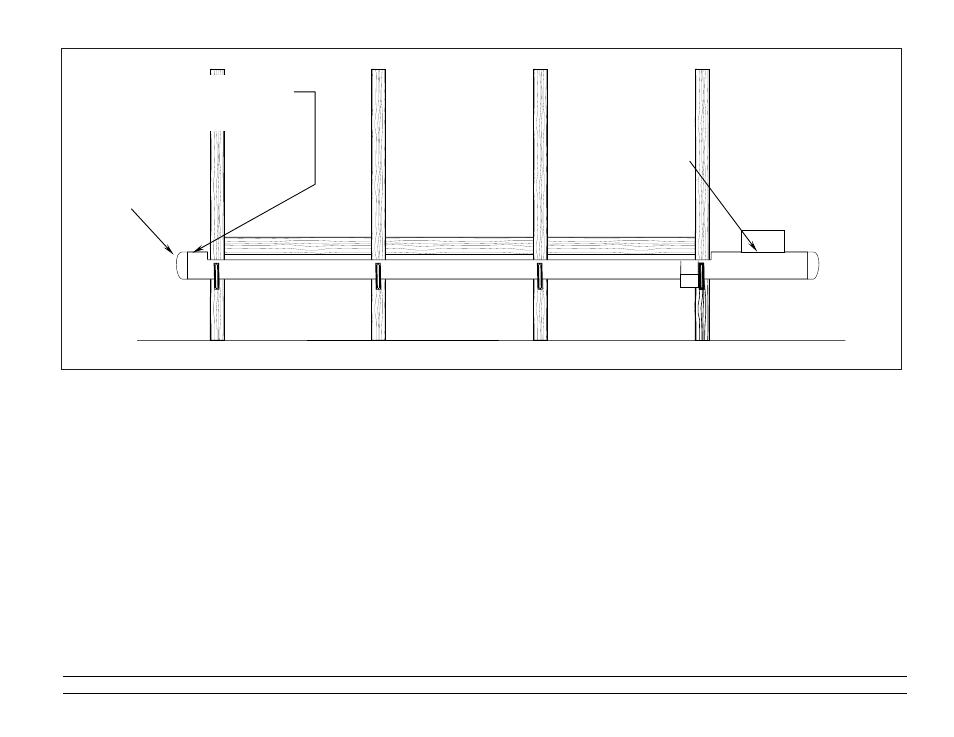

Install Removable End Cap
1. Removable end cap should be installed on end opposite the pump side of the reservoir unless a Center-Mount System is
installed. Removable End-Caps should be installed on both ends if a Center-Mount system is used. DO NOT GLUE ON
REMOVABLE
END-CAPS. Tighten worm gear clamp provided with Removable End-caps to pipe.
Removable End
Cap w/Clamp
(Do Not Glue)
Float Valve Tank
Assembly
2 ½ ft (76.2 cm)
beyond end post.
Pipe extended 6
″ (15.2 cm)
beyond end post of system.
