In-Line System Configuration Options
The Mega-Cool system can be mounted in various setup configurations
depending on the application requirements. Know the application requirements
before starting the Mega-Cool installation.
The step-by-step details will vary slightly with different setup options. The
main portion of the step-by-step instructions refer to the most commonly used
straight systems. Refer to the system specific figures for additional details.
Some of the pads have been removed from the figures for clarity.

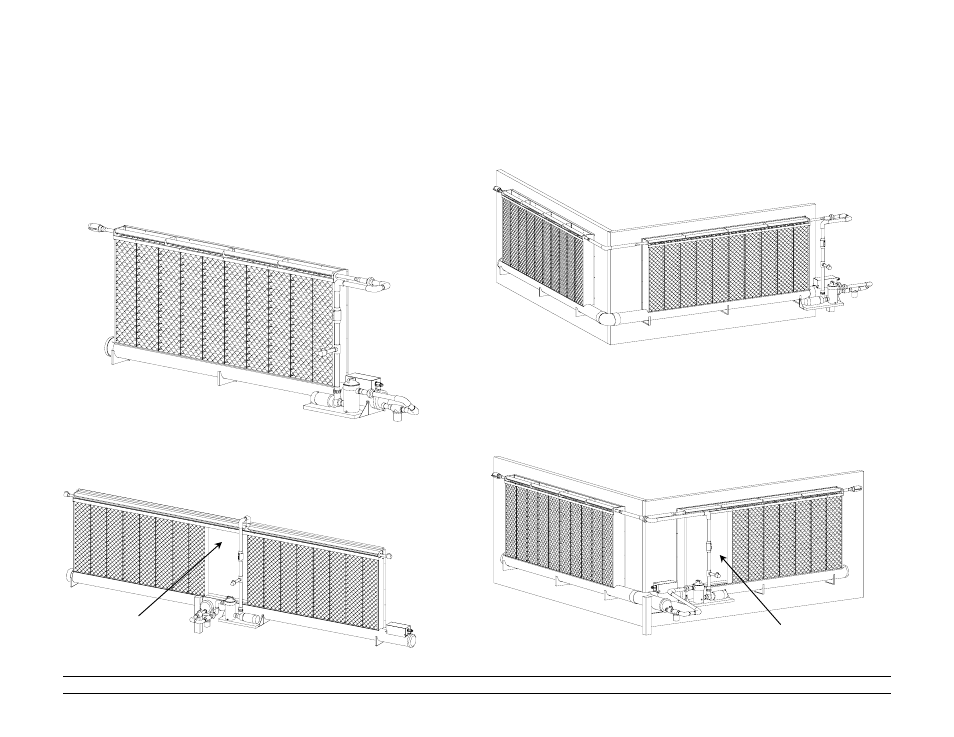

Examples of application configurations:
10’-80’ System Straight,
End-Mount, In-Line Pump
10’-120’ System Straight, Center-
Mount, In-Line Pump
Pads
Removed for
Clarity
10’-80’ System Corner,
End-Mount, In-Line Pump
Pads
Removed for
Clarity
NOTE for CORNER APPLICATIONS:
If the two sections are not equal in
length, the pump should mount on
the long side.
10’-120’ System Corner, Center-
Mount, In-Line Pump
