Part No. 4801-5120 Rev. 6-09 Mega-Cool System Page 23
Install In-Line Pump and Assemble Supply Line
1. Place In-Line Pump on the platform as shown above. Install the Strainer Basket O-rings. Connect the lower port of the strainer basket to the In-Line Pump inlet
using the liquid-tight fitting attached to the strainer basket. Hand-tighten ONLY.
2. Connect the upper port of the strainer basket to the union. Hand-tighten ONLY.
3. Connect two 1-1/2" (3.8 cm) couplings; One to the outlet side and another to the inlet side of the filter. Cut two 4" (10.16 cm) lengths of 1-1/2" (3.8 cm) dia. PVC
pipe. Install one end of pipe to strainer basket union and the other end to the 1-1/2" (3.8cm) coupling on the outlet-side of the filter.
NOTE: Install filter with the arrow pointed in the direction of water flow (toward the In-Line Pump).
4. Connect the other 4"(10.16cm) length piece of pipe to the inlet-side of the filter and to the ball valve.
5. Measurements will need to be verified before installation of the remaining section of pipe from the ball valve to the 1-1/2" (3.8 cm) coupling at the 8" end-cap.
6. Use two 1-1/2" (3.8 cm) elbows to install remaining sections of PVC pipe from the ball valve to the end-cap coupling. Cut PVC pipe as required. See the In-Line
Pump supply line diagram.

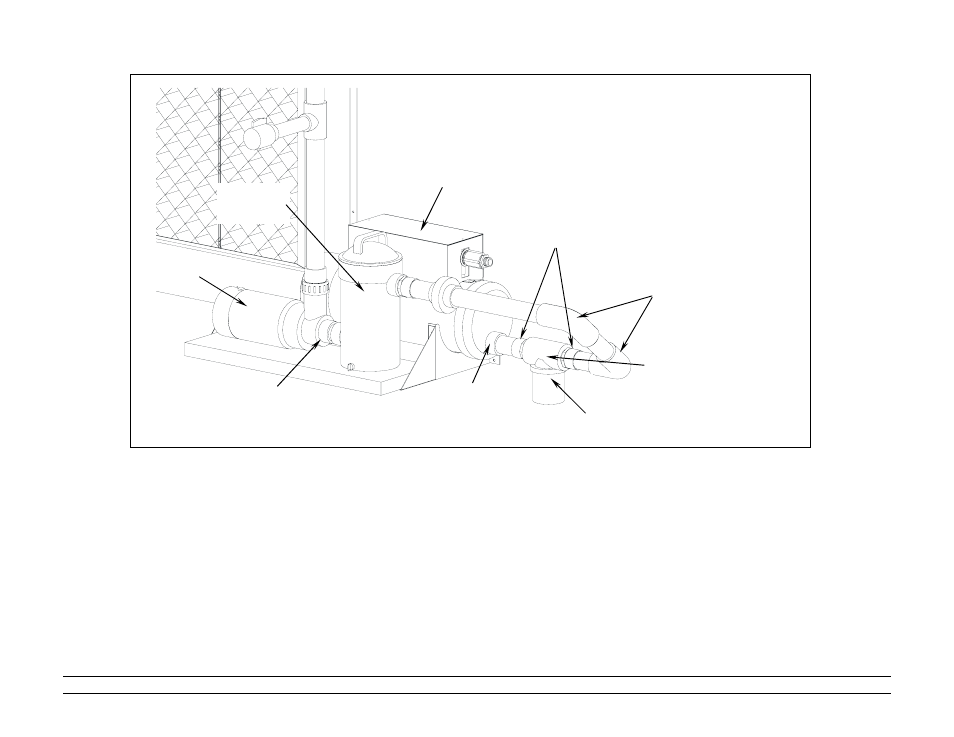

Pump
90 degree
Elbows
Float Valve
1-1/2" (3.8 cm)
Coupling
Filter
IMPORTANT!
Install Filter with
arrow pointing in
direction of water
flow!
Strainer
Basket
Union
(Supplied with pump)
1-1/2"(3.8
cm) Coupling
