Page 19: Side view
Part No. 4801-5120 Rev. 6-09
Mega-Cool System
Page 19

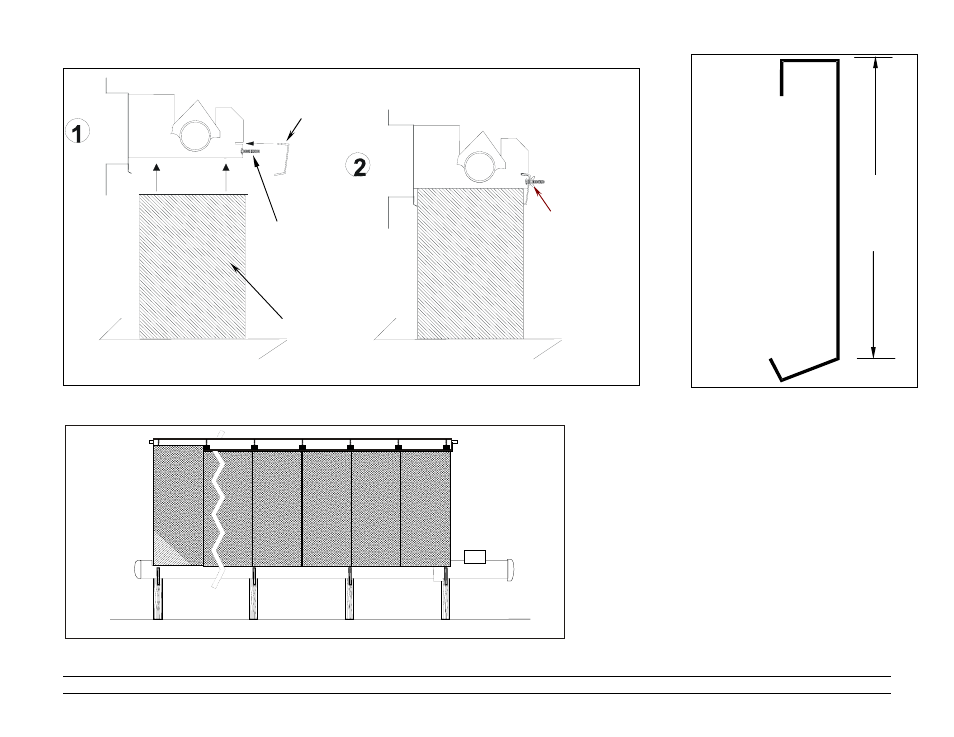

Install Cool Pads & Front Covers
1.
Insert pads into drip rail at bottom.
2.
Fit bolts through holes in back of support
brackets as shown above.
3.
Fit top of cool pad underneath spray line support
bracket and against back plate. Repeat for all
pads.
4.
Fit covers into the front slots of the spray line
support brackets. Insert top flange of cover into
slots of brackets as shown above.
5.
Tighten wing nuts to secure cover in place.
6.
Add cover splice to each joint where two covers
abut. See diagram above for cover splice.
Front
View
Mega-Cool
Cover Splice
2.55 in.
6.5 cm
Wing nut
Press-
Fit Bolt
Side View
Side View
Cove
Cool
Pad
