Hired-Hand Mega-Cool rev 6-09 - Manual (Page 21)

Part No. 4801-5120 Rev. 6-09 Mega-Cool System Page 21
Install System End Caps
1. Install metal end cap assembly at each end of system. (See Page 19)
2. Fit spray line through hole at top of end cap.
3. Securely fasten end caps to framing with #10 x 1" TEK screws.
4. Press 1/4" plastic plugs into exposed holes to prevent spray from
coming through these holes.
5. Paste label onto end cap as shown.

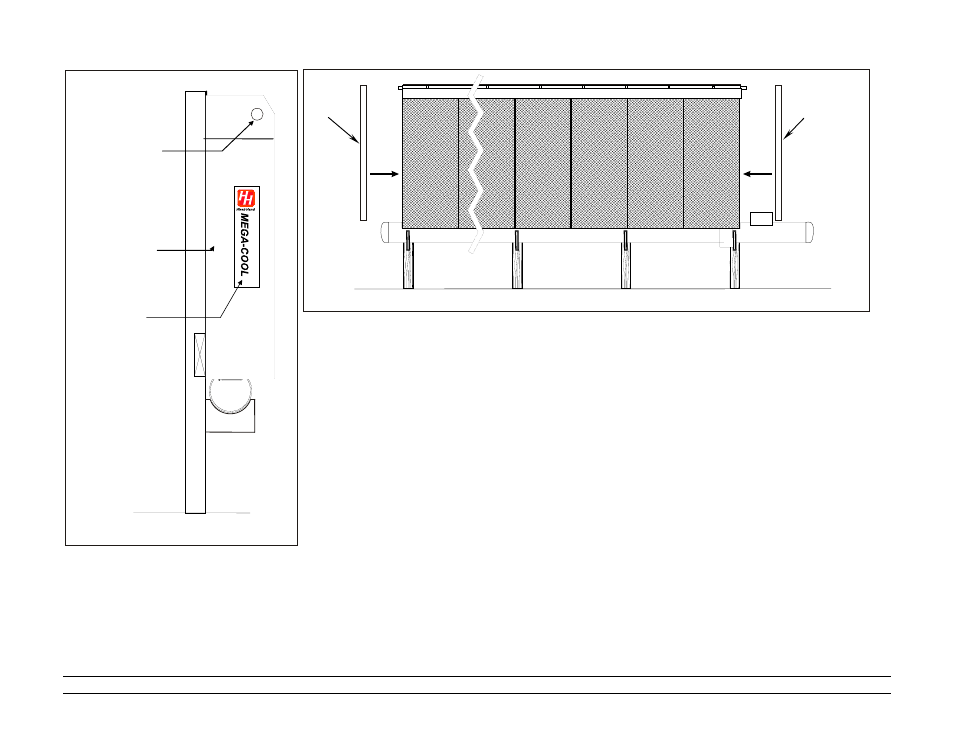

Front
View
Left
End Cap
Right
End Cap
Side View
Fit end of
spray line
through
hole .
End Cap
ASSEMBLY
Label
