Install spray line support brackets, Front view, Side view – Hired-Hand Mega-Cool rev 6-09 User Manual
Page 16
Part No. 4801-5120 Rev. 6-09
Mega-Cool System
Page 16
Install Spray Line Support Brackets
1. Make sure BackPlate is at proper framing height.

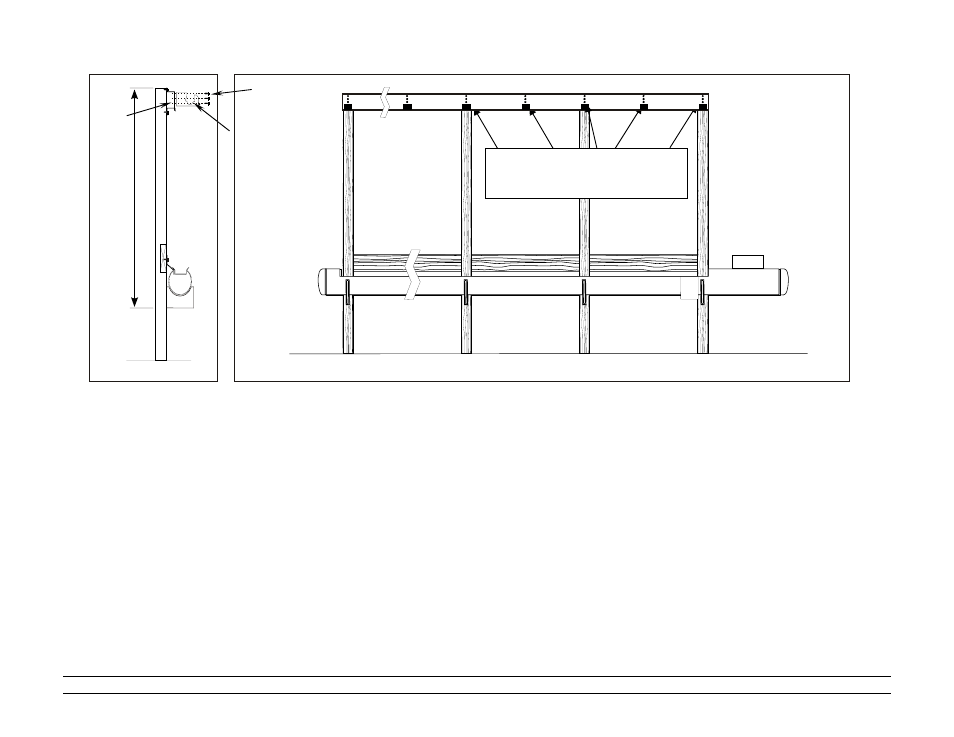

2. Attach spray line support brackets with #8 x ½" TEK screws at the pre-drilled hole positions as
shown in diagram above.
Side View
Front View
“A”
#8 x ½”
TEK screws
BackPlate
Spray Line
Support
Bracket
Locate and attach top support
brackets at pre-drilled hole positions
of back plate.
