Install splash guards – Hired-Hand Mega-Cool rev 6-09 User Manual
Page 18
Part No. 4801-5120 Rev. 6-09
Mega-Cool System
Page 18
Install Splash Guards
1.

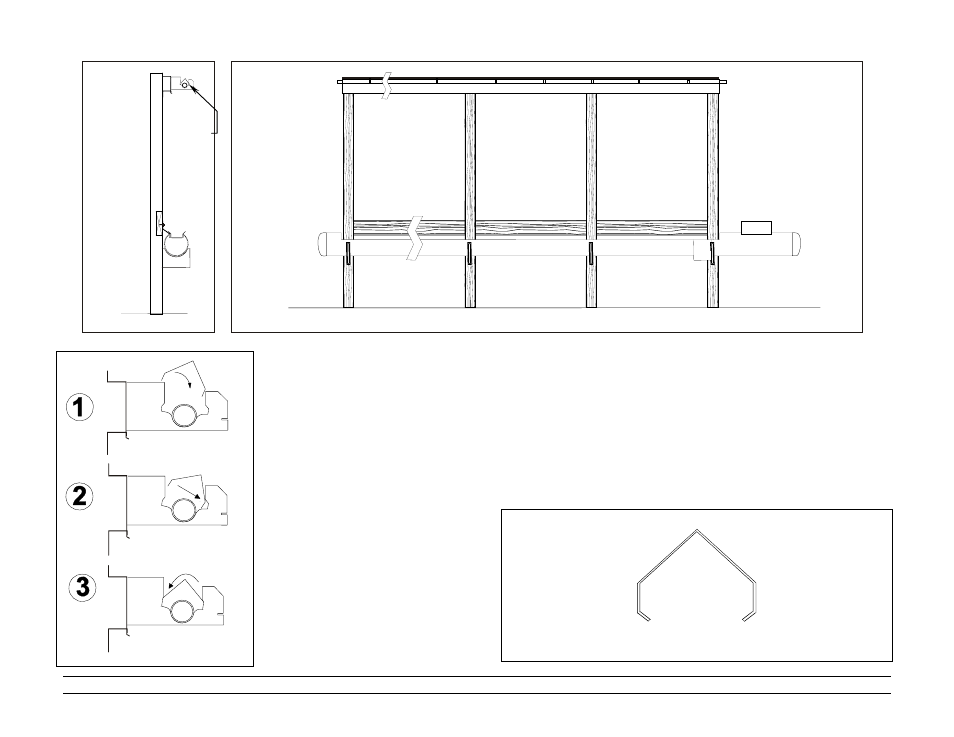

Insert splash guard into support bracket as shown in diagram at
left.
2.
Press front edge of splash guard against support bracket as
shown.
3.
Use both hands to grip splash guard near midpoint. Squeeze and
rotate splash guard downward until splash guard locks into
position in the support bracket.
4.
Add a splash guard splice to each joint where two splash guards
abut. Splash guard splice clips over joint. See diagram below.
Splash Guard
Splice
Insert splash guard into
support bracket
Press front of splash guard
into bracket as shown.
Squeeze and twist splash
guard downward to snap
splash guard into place.
Front View
Side View
Splash
guard
