Part No. 4801-5120 Rev. 6-09 Mega-Cool System Page 22
Install In-Line Pump Platform
The In-Line Pump Platform should be attached near the Float Valve
Assembly as close to the end of the system as possible, or for a Center-
Mount In-Line Pump setup, in the middle of the system. Refer to the
figure shown.
1. Leaving room for two attachment screws as shown, stretch a
chalk line between the two Pipe Support Brackets and mark the
LEVEL position on the Pipe Support Brackets for the top edge
of the In-Line Pump Support Brackets.
NOTE: The In-Line Pump Support Brackets should be mounted lower
than the Pipe Support Brackets as shown for ideal In-Line Pump
location.
2. Align the In-Line Pump Support Brackets with the marks on the
Pipe Support Brackets and securely mount with #14 x 1" Hex
Head TEK Screws.
3. Cut a treated 2" x 6" wood board to the appropriate length to
rest securely in the In-Line Pump Support Brackets. Attach the
wood to the brackets on both ends with TEK screws.
NOTE: Ideal performance and priming will be maintained when the In-
Line Pump is placed closer to the reservoir outlet and when the
In-Line Pump is mounted lower in relation to the water level of
the reservoir.

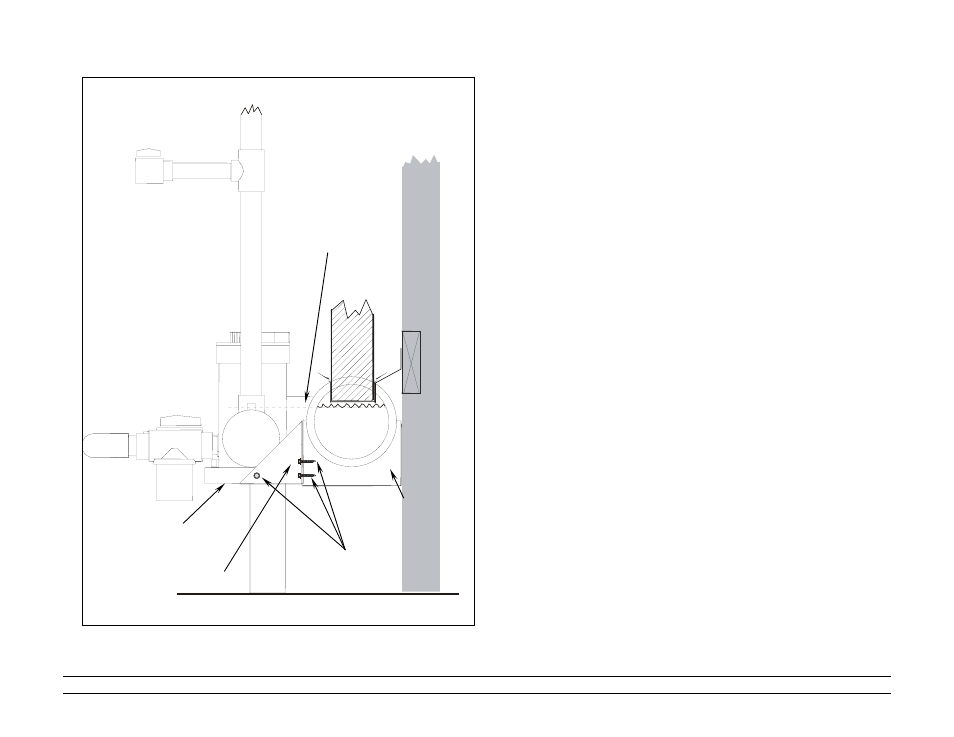

TEK Screws
Pump Support
Bracket (2x)
Pump Mount Plate
(Customer Supplied)
Figure shown with
pump assembly
completed.
8” Pipe Support
Bracket
Ideal performance is
obtained when the
pump is kept below the
reservoir water line.
