Chapter four, Keys and displays, Chapter 4: navigation and software – Watlow Series 96 User Manual
Page 16: Navigation and software
4 . 1
■
N a v i g a t i o n a n d S o f t w a r e
Wa t l o w S e r i e s 9 6
4
Chapter Four
Navigation and Software
Keys and Displays
This chapter explains keys, displays and navigation skills, and presents charts showing how
to accomplish basic tasks, including setting up the Custom Menu, which is unique to the
Series 96. You’ll also find a complete software map.

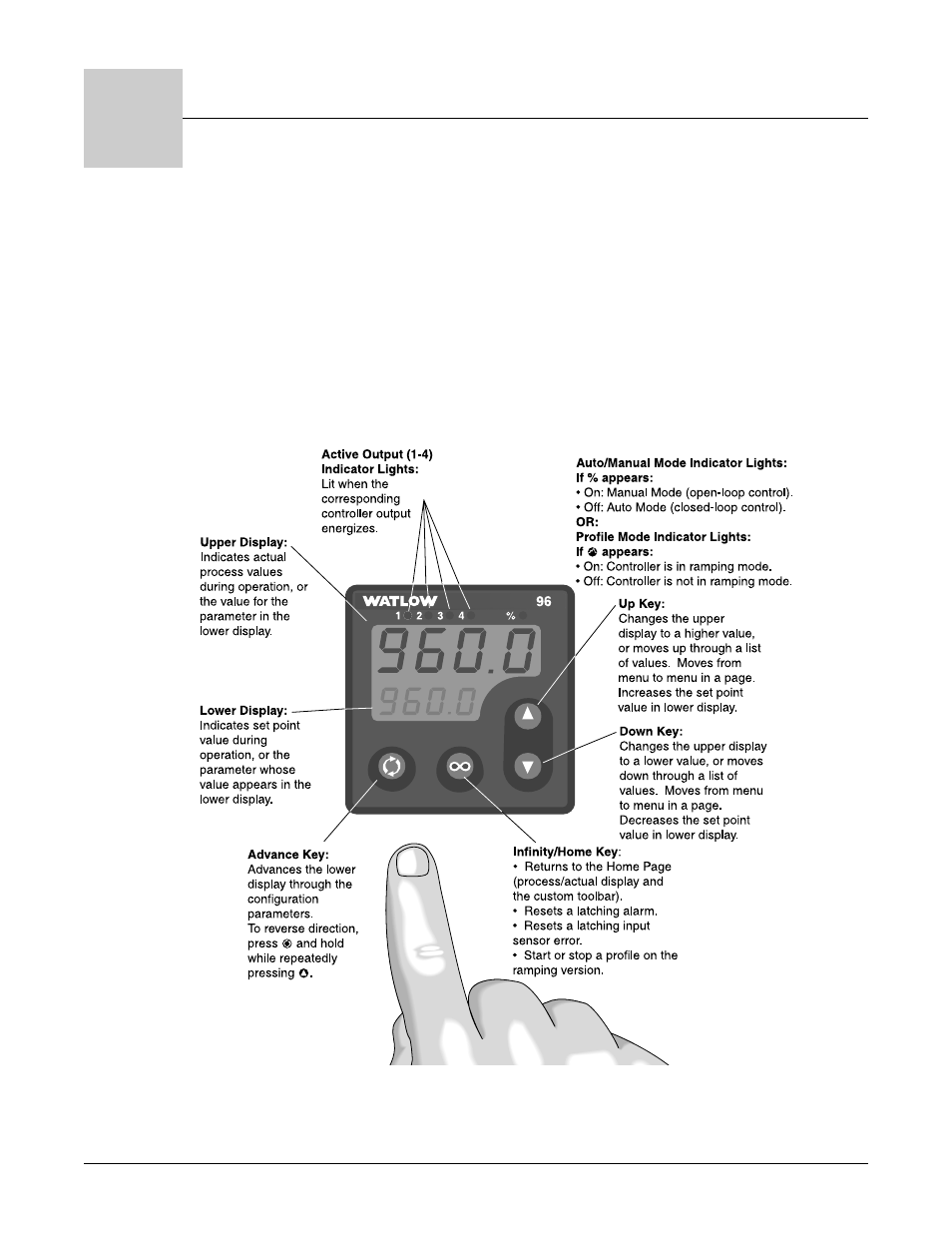

Figure 4.1 – Series 96 keys and displays.
